Home Valve Products Digital Control Valve (Softener timer& Softener meter)

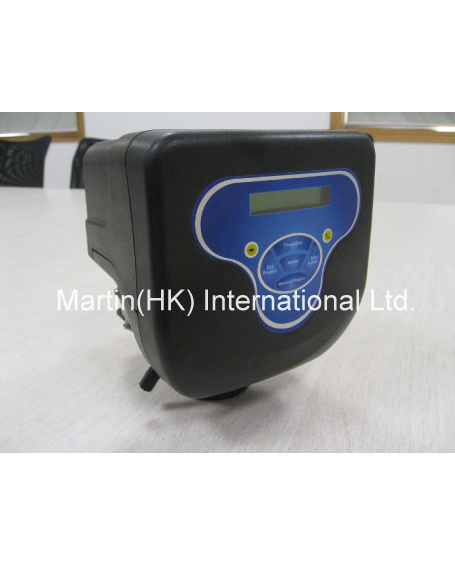

Digital Control Valve (Softener timer& Softener meter)

Digital Control Valve (Softener timer& Softener meter)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 12/Piece
Pay Type: L/C,T/T,Western Union
1)LCD display with full information.
2)Simple and clear kedboard design for easy and itelligible programming operation.
3)Four regeneration model unique "week" regeneration option.
4)Automatic restore the valve position of the power failue when power re-applied.
5)Valume based forced rgeneration option.
6)Autmatic keyboard locking and screen saving.
7)Automatically display the system errors
8)Patented NHWB design
9)Standard down-flow and up-flow in the hardwater pistion design.
Flow Rate( 50PSI/ 3.5bar)
  Valve Alone
  Continuous( 15PSI/ 1 bar Drop) 20GPM/ 76LPM
Peak( 25PSI/ 1.7 bar Drop) 26GPM/ 98LPM
Max Backwash( 25PSI/ 1.7 bar Drop) 17GPM/ 64LPM
CV(1PSI/ 0.07bar Drop) 5.0
Softener( 15PSI/ 1 bar Drop)
  8"44"@0.75cf/ 21L resin 9.6GPM/36.5LPM
9"48"@1.0cf/29L resin 11.5GPM/43.5LPM
10"54"@1.5cf/ 43L resin 11.8GPM/44.5LPM
12"48"@12.8L resin 12.8GPM/48.5LPM
14"64"@3.0cf/84L resin 14.5GPM/55LPM
16"65"@4.0cf/113L resin 15GPM/57LPM
Regeneration
  Downflow/Upflow Both
Cycles 5.0
Adjustable cycles All
Time available Up to 999 Minutes per cycle
Flow Meter
  Accuracy range 0.25-15GPM/0.95-57LPM+5%
Capacity range 1-9,999,999
Mounting& Shipping
  Inlet/Outlet 1" or 3/4",NPT or BSP
Base 2-1/2" 8 NPSM
Distriutor pilot 1.05" OD
Drain line 1/2" ID
Brine line 3/8" OD or 3/4" OD
Working
  Electrical rating 220V/110V/24V-50Hz/60Hz
Max. VA
Water Pressure
3VA
Hydrostatic:300PSI/20bar
Working:20-120PSI/1.4bar-8bar
Temperature 1-43C/34-11F

Prod Model: MT-D-STC/MT-D-SMM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: RoHS
Martin Water Technolgoies Inc. The subisidary of Martin (HK) International Limited in Shanghai. A professionally, technologically integrated manufacturer and distributor, carrying out activities in the filed of water treatment.

With the production facility "Martin Water Technologies Inc" in Shanghai, Martin (HK) International Limited has been managing to quickly and aggressively deliver the products abroad with its emphasis on quality control and customer satisfaction. Martin Products have earned an industry-wide reputation for high quality and superior performance. Many clients in Europe, America, Asia, Africa and Middle East use technologies, products and service of Martin, among them are well-known companies.

Being a designer and manufacturer of the commercial and industrial reverse osmosis systems, Martin (HK) International Limited provides both standard and customized designs in a large range of different systems, including pretreatment and post-treatment equipments. Martin is able to design the right products to fit your application and the best solution for your requirements.

Martin (HK) International Limited has dedicated the efforts into quick and prompt service, keeping close ties with clients, and always having an open and clear channel of communication with all the business partners.

Martin (HK) International Limited and its division Martin Water Technologies Inc. Operate internationally and are constantly developing Martin technology, the companies offer clients worldwide the most effective and advanced water treatment solutions for

Power industry
Industrial processes
Cooling systems
Steam and heat boilers
Drinking water
Waste Water
And also carry out wholesalers of spare parts and materials for the water treatment technologies.

Industries we serve
Power industry
Oil and gas refinery
Food industry
Beverage
Chemical industry
Municipal and government
Production of fertilizer
Textile
Pharmaceutics

Vision
To be a professional company, offering a full range of water treatment products and services in the global market, to constantly improve Martin technologies by developing and implementing new ideas depending upon progressive market requirements.

Mission:
Sales and introduction of advanced water treatment technologies for industry and household needs, directed to improve customer's production quality, to decrease industrial expense and increase its competitiveness, considering features of its manufacture and ecological requirements.

We believe "Life Is Easy To Be Pure" with Martin products.
