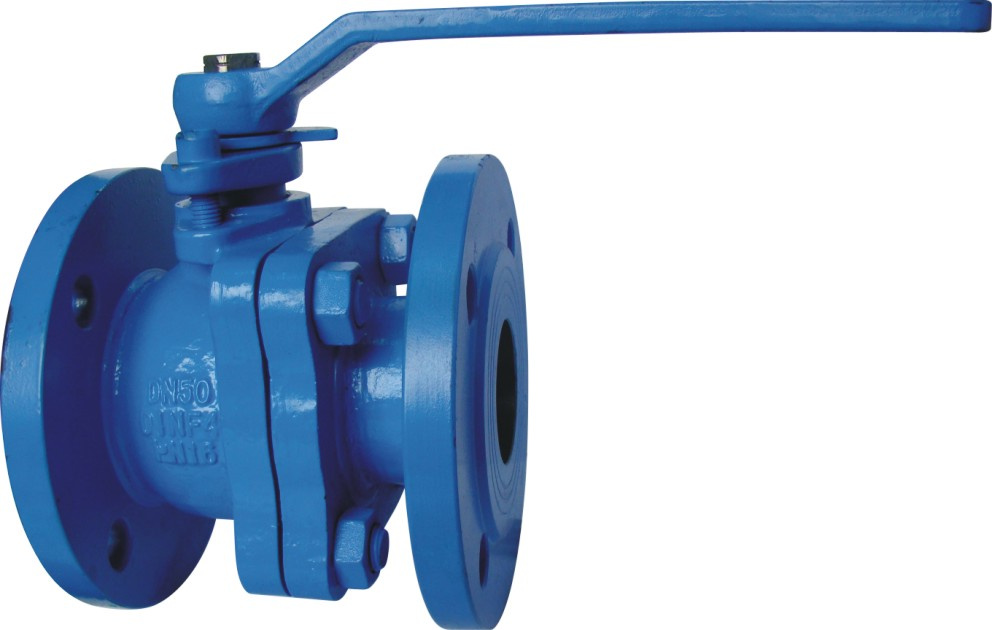

Ball valve can stand frequent use and has characteristics of quick switch and light weigt. Drive mde; Manual, pneumatic, electric, inion rotating.
1. Characterics of small fluid drag and good sealing property.
2. Simple structure, small size and convenient to repair.
3. Stem has blow-out proof structure
4. Ball valve has no restriction to direction of installing and direction of medium flowing. No vibration and quiet.
5. The part material, flanged and butt weld and dimension may be selected according to current operating conditioin and users requirement, so that meeting the requirements of various engineering.
Application: Industry, power system, flue gas purification plant, gas supply, shipbuilding, etc.
Medium: Petroleum, natural gas, natural gas purification, acidic gas, water, etc.
Material: GP240GH (1.0619/GS-C25), G-X6CrNi18.9(1.4308), G-X6CrNiMo18.10 (1.4408),
Nominal diameter: DN15-DN400;
Nominal pressure: PN16, PN25, PN40;
Design&manufacture standard conforms to EN 1983;
Face to face standard conforms to EN 558-1;
Flange standard conforms to EN 1092-1;
Test conforms to EN 12266
|
Body/Bonnet |
Stem |
Ball |
Seat |
Bolt |
Nut |
Packing |
Gasket |
|
GG |
13Cr |
13Cr |
PTFE |
B7 |
2H |
PTFE |
PTFE |
|
WCB |
13Cr |
13Cr |
PTFE |
B7 |
2H |
PTFE |
PTFE |
|
CF8 |
F304 |
F304 |
PTFE |
B7 |
8 |
PTFE |
PTFE |
|
CF8M |
F316 |
F316 |
PTFE |
B7 |
8 |
PTFE |
PTFE |
