Cast iron globe valve
Product Description
Components
1 Body Cast iron or ductile iron
2 Disc Cast iron or ductile iron
3 Seat Brass
4 Stem Carbon steel or stainless steel
5 Bonnet Cast iron or ductile iron
6 Hand wheel Cast iron or ductile iron
Application
1 Design according to DIN3202-F32
2 Flange end DIN2532/2533
3 Nominal Pressure PN10/PN16
Test
Working Pressure: PN10/PN16
Test Pressure Shell: 15bars/24bars
Seat 11bars/17.6bars.
Product Description
DIN globe valve,
Parts Material
Body, Bonnet: GG25
Disc: Stainless steel/Forged steel+Stainess Steel
Stem: Stainless Steel
Hand Wheel: GG25
Design Standard
Flange: DIN2532/2533
Face To Face: DIN3202-F1
Tect Standard;
Nominal Pressure(MPa): 1.6
Strengh Testing(MPa): 2.4
Enclose Tecting(MPa): 1.8
Nominal diameter(MM): DN15-300
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:

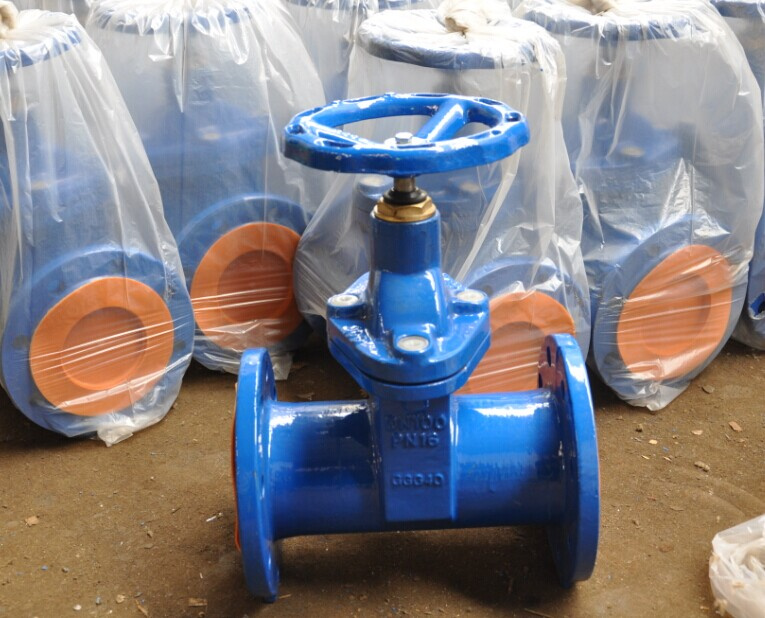

Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
