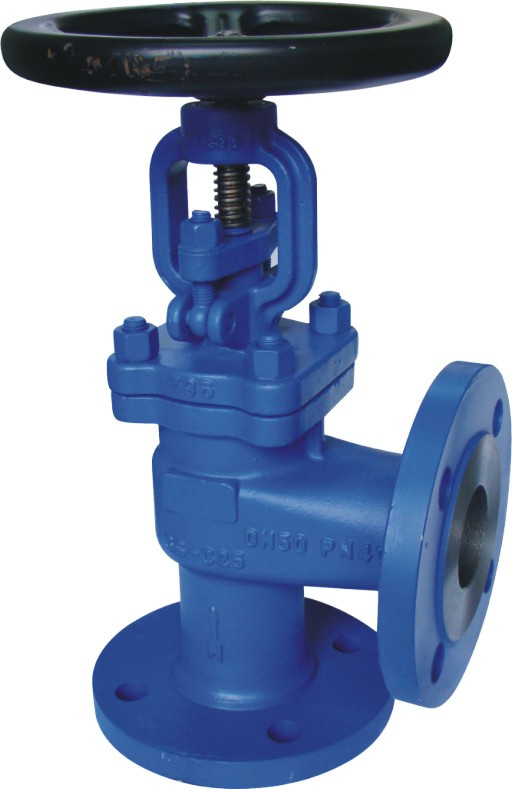

DIN Angle Globe Valve

DIN Angle Globe Valve
Price: Negotiable
Trade Terms: CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P
DIN Angle globe valve
1. Design standard: DIN3356-82
2. Face to face: DIN3202
3. Flange ends: DIN2543-2545
4. Test & inspection: DIN3230-75

Cast Steel Angle Globe Valve, Forged Steel Angle Globe Valve, Cast Iron Angle Globe Valve etc.
NO. Part name Material
1 Body GS-C25, CF8, CF3
2 Disc 1Cr13, F304, F316
3 Pin 25#, F304, F316
4 Stem 1Cr13, F304, F316
5 Middle Gasket 1Cr13, F304, F316
6 Cover GS-C25, CF8, CF3
7 Stem 1Cr13, F304, F316
8 Bolt ASTMA193 2H, A193-8, A193-8M
9 Nuts ASTMA193 B7, A193-B8, A193-B8M
10 Yoke Net 2CuZn25A116Fe3Mn2
11 Hand Wheel Carbon Steel
12 Nuts ASTMA193 7, A193-8, A193-8M
13 Gasket 1Cr13, F304, F316
14 Gland ASTMA193 B7, A193-B8, A193-B8M
15 Packing Flexible graphite+304 Flexible graphite+304, PTFE
16 Bolt ASTMA193 B7, A193-B8, A193-B8M
17 Disc Cover GS-C25, CF8, CF3

Structure formation BB-BG-OS& Y
Driving maner Hand-operated
Pneumatic
Design standard DIN3356
Face to face DIN3202
Flange ends DIN2543-2545
Test & inspection DIN3230

Pressure                                                           PN16
SIZE 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 191 191 197 200 218 220 238 257 340 360 390 530 665 720
W 120 120 140 140 160 180 180 200 250 300 300 400 520 520
h 7 7 12 13 14 15 19 23 28 35 42 52 64 75
Kv 4.2 7.4 12 19 30 47 77 120 188 288 410 725 1145 1635

Pressure                                                           PN25
SIZE 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 191 191 197 200 218 220 238 257 340 360 390 530 665 720
W 120 120 140 140 160 180 180 200 250 300 300 400 520 520
h 7 7 12 13 14 15 19 23 28 35 42 52 64 75
Kv 4.2 7.4 12 19 30 47 77 120 188 288 410 725 1145 1635

Pressure                                                           PN40
SIZE 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 191 191 197 200 218 220 238 257 340 360 390 530 665 720
W 120 120 140 140 160 180 180 200 250 300 300 400 520 520
h 7 7 12 13 14 15 19 23 28 35 42 52 64 75
Kv 4.2 7.4 12 19 30 47 77 120 188 288 410 725 1145 1635
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Cast Steel
Connection Form: Flange
Channel: Straight Through Type
Type: Globe Valve
Structure: Globe Valve
TECHNSPERT is your Technology Expert of industrial valves and pipeline accessories.

At TECHNSPERT, you will find an extensive range of industrial valves, fittings, pipes, flanges, gasket, fasteners and other spare parts for oil, gas, refinery, water treatment and industrial applications, with more than 80 products available in over 600 sizes and 30 materials.

The company mainly manufactures the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main Manufacturing and Supplying Capability Covering Gate Valve, Ball Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer etc. Approved by ISO9001: 2008, API600, API6D, API6FA and CE/PED. The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Germany, Peru, Jordan, Kenya and other countries, and has set up the office in Manhattan, New York. With advanced technology and reliable quality, our products have gained great reputation all over the world...

With a wide range of valves from stock or on site at the factory, we are well placed to meet delivery times expected in today's commercial climate. Today, by combining stocks of various of valves, with indepth technical expertise in their specification and use, we are relied upon, as leading valve suppliers, to source and modify valves that precisely meet our customers requirements and deadlines.

TECHNSPERT is a company on the move, ever growing and expanding. By working with TECHNSPERT our customers join in a partnership with a family of factories who bring traditional values of service and quality into a technological combination. If you have any questions or would like more information, please feel free to contact us.
