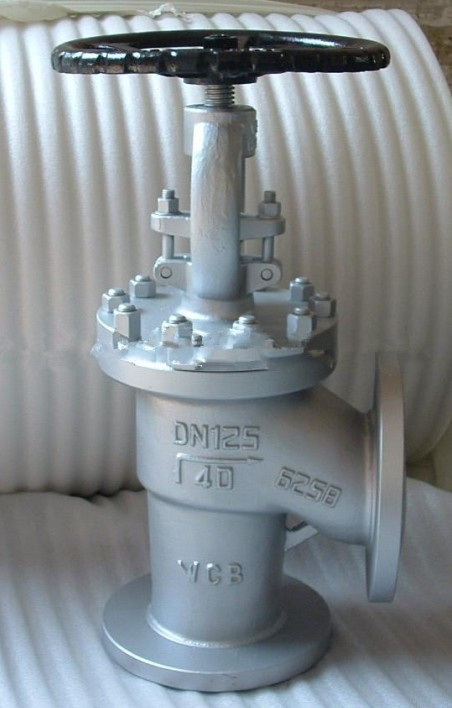

DIN Angle globe valve
DIN Angle globe valve
1. Design standard: DIN3356-82
2. Face to face: DIN3202
3. Flange ends: DIN2543-2545
4. Test & inspection: DIN3230-75
NO. Part name Material
1 Body GS-C25, CF8, CF3
2 Disc 1Cr13, F304, F316
3 Pin 25#, F304, F316
4 Stem 1Cr13, F304, F316
5 Middle Gasket 1Cr13, F304, F316
6 Cover GS-C25, CF8, CF3
7 Stem 1Cr13, F304, F316
8 Bolt ASTMA193 2H, A193-8, A193-8M
9 Nuts ASTMA193 B7, A193-B8, A193-B8M
10 Yoke Net 2CuZn25A116Fe3Mn2
11 Hand Wheel Carbon Steel
12 Nuts ASTMA193 B7, A193-B8, A193-B8M
13 Gasket 1Cr13, F304, F316
14 Gland ASTMA193 B7, A193-B8, A193-B8M
15 Packing 304 Flexible graphite+304, PTFE
16 Bolt ASTMA193 B7, A193-B8, A193-B8M
17 Disc Cover GS-C25, CF8, CF3
