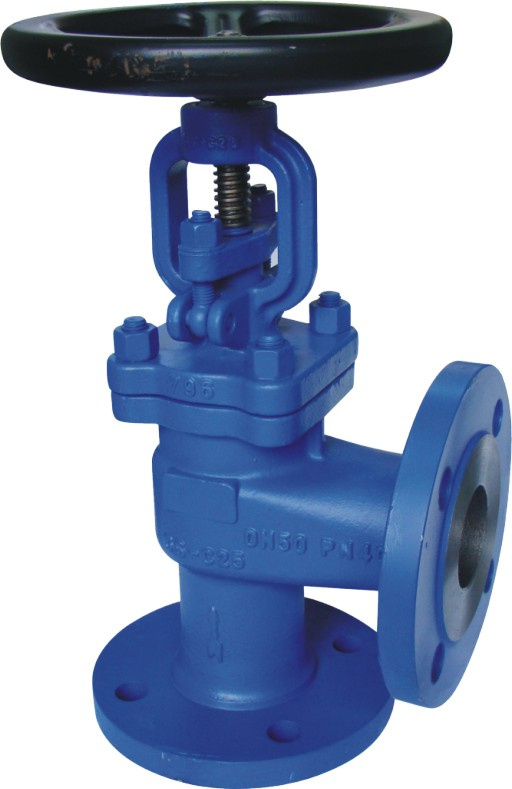

DIN Angle-Type Stop Valve

DIN Angle-Type Stop Valve
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
DIN Angle-Type Stop Valve
1. Design standard: DIN3356-82
2. Face to face: DIN3202
3. Flange ends: DIN2543-2545
4. Test & inspection: DIN3230-75
NO. Part name Material
1 Body GS-C25,CF8,CF3
2 Disc 1Cr13,F304,F316
3 Pin 25#,F304,F316
4 Stem 1Cr13,F304,F316
5 Middle Gasket 1Cr13,F304,F316
6 Cover GS-C25,CF8,CF3
7 Stem 1Cr13,F304,F316
8 Bolt ASTMA193 2H,A193-8,A193-8M
9 Nuts ASTMA193 B7,A193-B8,A193-B8M
10 Yoke Net 2CuZn25A116Fe3Mn2
11 Hand Wheel Carbon Steel
12 Nuts ASTMA193 B7,A193-B8,A193-B8M
13 Gasket 1Cr13,F304,F316
14 Gland ASTMA193 B7,A193-B8,A193-B8M
15 Packing 304 Flexible graphite+304,PTFE
16 Bolt ASTMA193 B7,A193-B8,A193-B8M
17 Disc Cover GS-C25,CF8,CF3





Pressure

                              PN16

SIZE

15

20

25

32

40

50

65

80

100

125

150

200

250

300

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

H

191

191

197

200

218

220

238

257

340

360

390

530

665

720

W

120

120

140

140

160

180

180

200

250

300

300

400

520

520

Weight

4

4.5

5.5

11



12

18

23

41

54

90

145

245

385



Pressure

                              PN25

SIZE

15

20

25

32

40

50

65

80

100

125

150

200

250

300

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

H

191

191

197

200

218

220

238

257

340

360

390

530

665

720

W

120

120

140

140

160

180

180

200

250

300

300

400

520

520

Weight

4

4.5

5

7.5

9.5

12.5

19

24

43

57

95

150

245

396



Pressure

                              PN40

SIZE

15

20

25

32

40

50

65

80

100

125

150

200

250

300

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

H

191

191

197

200

218

220

238

257

340

360

390

530

665

720

W

120

120

140

140

160

180

180

200

250

300

300

400

520

520

Weight

4

4.5

5

8

10

13.5

20

25

45

60

98

158

264

405

Products performance specification
(LB) Nominal pressure
(Mpa)Shell test

(Mpa)Sealing test
Suitable temp

Suitable medium
1.6 2.4 1.76 -20~450 degree
Water, steam, oil
2.5 3.75 2.75
4.0 6.0 4.4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pattern: Angle Type
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Zhejiang def valve Co., Ltd. has been a member of China valve association and the network member of China petroleum & natural gas corp. For more than 20 years in manufacturing valves. Our company has a perfect quality management system certified by international certificates successively. Yongjia def valve Co., Ltd. imports the most advanced and specialized equipment from Japan. Meanwhile, our company cooperates with the valve institutes in Beijing of China, continuously adapts new techniques, new materials and new technology, and develops new products.

China yongjia def valve Co., Ltd. has acquired several patents in the valve industry, such as pressure balanced plug valve which meets national new technical patent. Our company has been awarded creative fund supported by technology department of China.

Over 90% of our products are exported to foreign countries and our annual output is more than 950 tons. Our markets are covering north America, Europe and the MID east, such as the u. S. A, the u. K., Italy, Australia, Indonesia, Kuwait, Czech, the Netherlands, and Spain. Due to the stringent quality control, excellent service and good reputation, our company has been known in worldwide.
