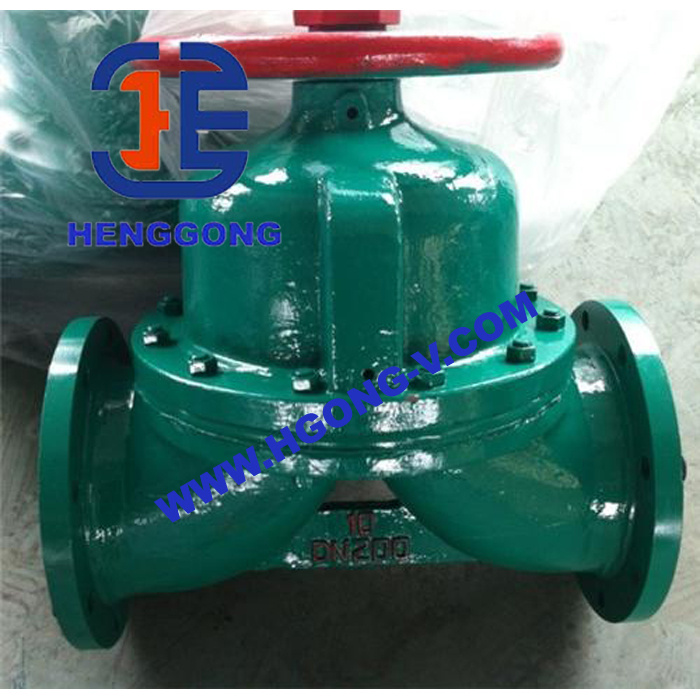

DIN/Bs Pn10 Ci/Di Diaphragm Valve

DIN/Bs Pn10 Ci/Di Diaphragm Valve
Price: US $ 30/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description
Weir Type Diaphragm Valves (G46)

Technical specificastion

Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89

Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202

Flanged Dimension: BS 5156-85, ANSI B16.5, EN 1092, GB/T 17421-98

Inspect & Test: BS 5156, MSS SP-82, GB/T 13927

Operation: Handwheel, Pneumatic, Electric

Pressure Rating: PN6, PN10, PN16, ANSI 125, ANSI 150

Component material

Body / Bonnet: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel & Duplex

Lining (Optional): Fluorine -- PTFE, FEP, PCTFE, PVDF, TFE, PFA, RPP, PO

Rubber -- NR, BR, IIR, CR, EPDM, CSPE, FKM, SI

Diaphragm: Rubber

Compressor / Disc: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel

Stem: Carbon Steel & Stainless Steel

Handwheel: Iron & Steel
Design and ManufactureBS 5156-85, MSS SP-88, GB 12239-89
Face to Face DimensionBS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
Flanged DimensionBS 5156-85, ANSI B16.5, EN 1092, GB/T 17421-98
Inspect & TestBS 5156, MSS SP-82, GB/T 13927

Prod Model: G41X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Straight Through Diaphragm Valve: Cast Iron
Material: Cast Iron
Structure: Through Way Diaphragm Valve
Connection: Flanged Diaphragm Valve
Actuator: Manual
Function: Field Bus
Standard: JIS
Established in 1998, HengGong valve Group Co., Ltd., is located in Dongou Industrial Area in Oubei Town of Yongjia County, the cradleland of "China Pump and Valve", which enjoys favorable geographical location and convenient transportation. Presently, our company is covering an area of 3000 square meters, and owns 10 senior engineers, 20 technicians and more than 150 staff. The company has strong technical capabilities and high-quality personnel teams.

Our company owns advanced manufacturing technologies, testing equipments. Moreover, our products have passed the ISO9001 Quality System Certification and Pressure Equipment Direction EC Certification. From design to delivery, in each procedure, products are controlled strictly in accordance with ISO9001(CQC) and the quality of products produced by our company is all insured by People's Insurance Company of China.

The company is specialized in production of a series of products such as knife style gate valves, various types of metal hard sealed ball valves, PTFE soft sealed ball valves, high temperature and pressure wrought steel ball valves and eccentric semispherical valves, three way valves(T-pattern, Y-pattern and L-pattern), API valves, forged steel valves, butterfly valve, globe valves, check valves and more, which are designed and manufactured according to international standards like GB, ANSI/API, JIS, DIN and etc. The main body material of produced valves.

Includes: WCB, WC1, WC6, WC9, CF8, CF8M, CF3, CF3M, 12CrMoV, 15Cr1Mo1V, LCB, LF and so on. The nominal diameter vary from 10mm to 1000mm and from 1/2" to 24". Operating pressure vary from 10MPa to 160MPa and 150Lb to 2500Lb. There are many driving modes including manual drive, helical wheel drive, electric drive, pneumatic power, hydraulic power, combined drive by electricity and liquid. All sorts of non-standard valves can be designed and produced in accordance with customers' request.
