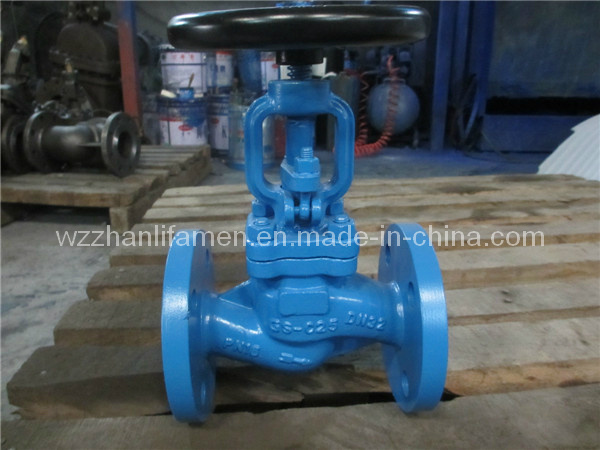

DIN Globe Valves are suitable for the pressure from PN1.6 to 16MPa. It can work in the medium of -29 degree celsius to 425 degree celsius combustible, explosive, toxi, fluid, heat-conducting oil and liquid ammonia. Application: Petrochemical industry, Chemical Fiber Textiles, plastic, paper making, power industry, steel, rubber and gas systems. The performances is very reliable.
Rational Structures, Reliable Sealing, Zero Leakage of Stem.
Details are below:
1. Technical Specifications:
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003
2. Performance Specifications: Please consult the tables below.
3. Main Parts and Materials: Please consult the tables below.
4. Main Sizes and Dimensions: Please consult the tables below.
If this product interests you, please feel free to contact with us!
Quality first, reputation uppermost!
Performance Specifications |
Nominal Pressure | 1.6MPa | 2.5MPa | 4.0MPa |
Pressure Test | Intensity Test | 2.4MPa | 3.75MPa | 6.0MPa |
Back Seal Test | 1.76MPa | 2.75MPa | 4.4MPa |
Seal Test | 1.76MPa | 2.75MPa | 4.4MPa |
Gas Test | 0.6MPa | 0.6MPa | 0.6MPa |
Suitable Temperature | (-)29-425ºC |
Suitable Medium | W.O.G |
1.Body | GG GS-C25,CF8,CF8M | 7.Bonnet | GG GS-C25,CF8,CF8M | 13.Nut | A1942H,A194-8 |
2.Disc | GS-C25,CF8,CF8M | 8.Packing | Flexible Graphite | 14.Oil Cup | Brass |
3.Stem | 13Cr,F304,F316 | 9.Pin | C.S SS304 SS316 | 15.Stem Nut | Bronze,304,316 |
4.Gasket | Flexible Graphite+304 | 10.Gland | GS-C25 SS304 SS316 | 16.Bearing Cap | A105,F304,F316 |
5.Bolt | A193-B7,A193-B8 | 11.Gland Cover | 1.2291 | 17.Handwheel | A105,F304,F316 |
6.Nut | A1942H,A194-8 | 12.Key Bolt | A193-B7,A193-B8 | 18.Lock Nut | 25# ss304 ss316 |
Size | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 |
L | PN16 | 240 | 250 | 290 | 310 | 350 | 400 | 450 | 550 | 650 | 750 |
PN25 | 240 | 250 | 290 | 310 | 350 | 400 | 450 | 550 | 650 | 750 |
PN40 | 240 | 250 | 290 | 310 | 350 | 400 | 450 | 550 | 650 | 750 |
D | PN16 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
PN25 | 150 | 165 | 185 | 200 | 235 | 270 | 300 | 360 | 425 | 485 |
PN40 | 150 | 165 | 185 | 200 | 235 | 270 | 300 | 375 | 450 | 515 |
D0 | PN16 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 |
PN25 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 310 | 370 | 430 |
PN40 | 110 | 125 | 145 | 160 | 190 | 220 | 250 | 320 | 385 | 450 |
D1 | PN16 | 88 | 102 | 122 | 138 | 158 | 188 | 212 | 268 | 320 | 378 |
PN25 | 88 | 102 | 122 | 138 | 162 | 188 | 218 | 278 | 335 | 395 |
PN40 | 88 | 102 | 122 | 138 | 162 | 188 | 218 | 285 | 345 | 410 |
g | PN16 | 18 | 18 | 18 | 20 | 20 | 22 | 22 | 24 | 26 | 28 |
PN25 | 20 | 20 | 22 | 24 | 24 | 26 | 28 | 34 | 36 | 40 |
PN40 | 20 | 20 | 22 | 24 | 24 | 26 | 28 | 34 | 38 | 42 |
f | PN16 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
PN25 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
PN40 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 |
nXd | PN16 | 4×18 | 4×18 | 8×18 | 8×18 | 8×18 | 8×18 | 8×22 | 12×22 | 12×26 | 12×26 |
PN25 | 4×18 | 4×18 | 8×18 | 8×18 | 8×22 | 8×26 | 8×26 | 12×26 | 12×30 | 16×30 |
PN40 | 4×18 | 4×18 | 8×18 | 8×18 | 8×22 | 8×26 | 8×26 | 12×30 | 12×33 | 16×33 |
H | PN16 | 325 | 335 | 370 | 415 | 485 | 515 | 600 | 730 | 890 | 1050 |
PN25 | 325 | 335 | 370 | 415 | 485 | 515 | 600 | 730 | 890 | 1050 |
PN40 | 325 | 335 | 370 | 415 | 485 | 515 | 600 | 730 | 890 | 1050 |
W | PN16 | 200 | 250 | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
PN25 | 200 | 250 | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
PN40 | 200 | 250 | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
