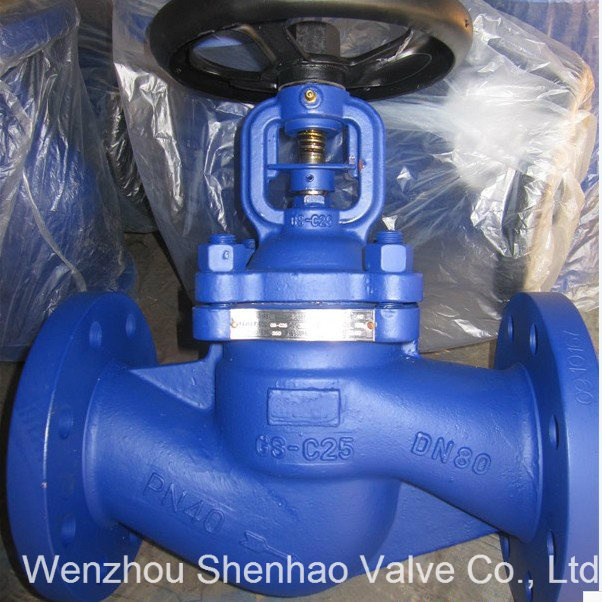

DIN Cast & Forged Bellow Globe Valve (J41)
Quick Details
Standard or Nonstandard: StandardStructure: Bellow Globe valvePressure: Low Pressure, 150LB-2500LB
Power: ManualMaterial: CastingTemperature of Media: Low Temperature
Media: WaterPort Size: 6"Place of Origin: Zhejiang China (Mainland)
Brand Name: VATACSize: 1/2"-36"End Connection: RF
Packaging & Delivery
Packaging Detail: Sea Worthy or according to the requirement
Delivery Detail: 30- 35 days after receiving the deposit of our customers
Specifications
1. Pressure: 150LB-900LB
2. Size: 1/2"-36"
3. Design: ANSI, JIS, DIN, ETC
4. Material: As buyer request
DIN Y Type Bellow Sealed Globe Valve
Specifications
Size: 1/2 "-36 "
1Connection: RF/RTJ Flange, Butt Welded
2. Pressure Rating: Class 150LB~ Class 2500LB
3. OEM/ ODM
Detailed Product Description
Size: 1/2 "-36 "
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 150LB~ Class 2500LB
Suitable medium: Water, oil, gas, etc.
Detailed Product Description
Globe valve
Product name:
Globe valve
Application:
Gas and steam generating stations, steam power stations, nuclear power stations
Item number:
J4 /Z6
Size:
1/2 "-36 "
Pressure Rating:
Class 150LB-2500LB
Connection:
RF/RTJ Flange, Butt Welded
Material:
A105, LF2, F11, F22, F5, F304, F316, F304L, F316L(1/2" -2 ")
WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M, CF8C(2" -36")
Model:
Straight-through type
Operating Type:
Handwheel, Gear, Pneumatic, Electric
Manufacturing to NACE MR-01-75 on request,
And OEM/ ODM are offered.
Detailed Product Description
Globe valve
Specifications:
Size: 1/2 "-36 "
Connection: RF/RTJ Flange, Butt Welded
Pressure Rating: Class 150LB~ Class 2500LB
Material: A105, LF2, F11, F22, F5, F304, F316, F304L, F316L(1/2" -2 ")
WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M, CF8C(2" -36")
Structural Features: Bolted bonnet, Pressure Seal Bonnet, single disc, double disc.
Operating Type: Handwheel, Gear, Pneumatic, Electric
Certification: ISO9001, API600, CE0036
Guarantee: 18months; OEM offer
Suitable medium: Water, oil, gas...
Design Standard:
² Design & Manufacture Std.: ASME B16.34, BS1873, JIS B2071, B2081
² Inspection and Test: API598
² Face to Face Dimension: ANSI B16.10, API 6D, JISB2002, DIN3202
² End Flange Dimension: ANSI B16.5, JISB2212-JISB2214
² Butt-welding End Dimensions to: ANSI B16.25
² Packing: Wooden case, plywood case
Quotation Reminder
To better ervice your demand for commodity, we hope the following information can be offered, thanks.
Design standard Connection standard. Size. Body material. Trim (Material for inside parts). Connection type. Operation type. Medium. Temperature. Ambient temperature range.
Corrosion considerations. Application Description. Painting color. Label content
DESGN & MFT. | BS 1873 | ENDS CONNECTION | R.F |
PRE-TEP. RATING | ASME B16.34 | INSPECT & TEST | API 598 |
F-F DIMENSION | MSS SP-68 | END CONNECTION | ASME B16.5 |
MARKING | MSS-SP-25 | FIRE SAFE DESIGN | -- |
PAITING | MFTR STD | SPE. REQUIREMENTS | N.A |
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.
SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.
We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.
We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!
We are looking forward to work with you!
