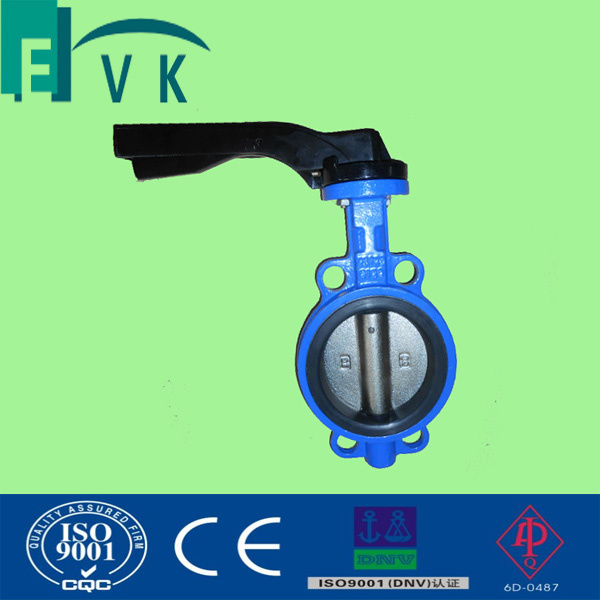

DIN Cast Iron or Ductile Iron Soft Seal Wafer Butterfly Valve

DIN Cast Iron or Ductile Iron Soft Seal Wafer Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C
DIN Cast Iron or Ductile Iron Soft Seal Wafer Butterfly Valve:

Features:

Butterfly Valve:

1) DN40-1200 PN10/16
2) ISO9001: 2008 and CE Certificates
3) Relable OEM Factory, high quality, low price, fast delivery
4) Many patents

Brief Introduction:

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.

Product Advantages:

1)Small in size and light in weight and maintaince.
It can be mounted whereever needed.

2)Simple, compact structure, quick 90 degree on-off operation.

3)Disc has two-way bearing, perfect seal, without leakage under
The pressure test.

4)Flow curve tending to straight-line. Excellent regulation performance.

5)Various kinds of materials, applicable to different medium.

6)Strong wash and brush resistance and can fit to bad working condition.

7)Center plate structure, small torque of open and close.

8)Long service life. Standing the test of ten thousands opening and
Closing operation.

9)Can be used in cutting off and regulation medium
Size DN40-DN1200
End flange ANSI B 16.1, EN 1092, AS 2129
Face to face ANSI B 16.10; EN 558-1 Series 20
Top flange ISO 5211
Normal Pressure DN40-DN600 PN1.0/1.6MPa (150/200PSI) DN700-DN1200 PN1.0MPa (150PSI)
Body CI/DI/WCB/ALB/CF8/CF8M
Disc DI/ALB/Rubber lined Disc/ 1.2501/CF8M/1.4529/CF8/Hastelloy Alloy/Monel
Stem: 416/304/316/431/17-4PH
Seat NR/Hypalon/EPDM/Neoprene/NBR/Wear-Resistant  EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM /PTFE
Suitable Temperature -40c~80c
Apply Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Prod Model: DIN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Wafer Type Butterfly Valve
Type: Wafer
Body Material: Ci/Di
Seat Material: EPDM/NBR/PTFE
Disc Material: Di/Ss/Al-Br
Lever: Malleable Iron/Aluminium Lever
Pressure: Pn16
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Wafer
Structure: Centre Sealing
Working Temperature: Normal Temperature (',-40??C
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.

Main production includes:

Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)

Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.

Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).

Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.

We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.

Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
