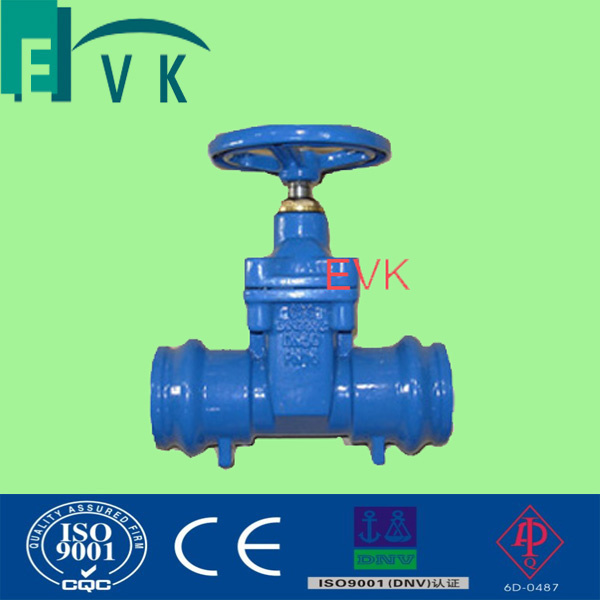

DIN Cast Iron Resilient Seated Socket End Gate Valve
For PVC, PE pipes and iron pipes
Description:
1>Size: Dn50-dn300
2>Body material: Ductile iron
3>Pressure: Pn10/pn16
4>Face-to-face dimension conforms to bs, DIN, ANSI, awwa standards.
5>Handwheel/wrench nut operation
6>External and internal epoxy powder coated
Specifications
1. Suitable media: Water.
2. Flange: DIN2501/EN1092-2 PN10/16/25.
3. Nominal diameter: DN40~DN600 (1 1/2"~24").
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.
6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
7. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).
8. Face-to-face conform to DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14.
Main parts materials
A) Seat: EPDM/NBR.
B) Gland follower: Brass/ductile iron.
C) Bolt and nut: Stainless steel, steel with zinc.
D) Stem: Stainless steel, brass, bronze, steel with zinc.
E) Hand-wheel: Ductile iron/ malleable Iron/carbon steel.
F) Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
|
PART |
MATERIAL |
|
SEAT |
EPDM/NBR |
|
GLAND FOLLOWER |
BRASS/DUCTILE IRON |
|
BOLT AND NUT |
STAINLESS STEEL,STEEL AND ZINC |
|
STEM |
STAINLESS STEEL,BRASS,BRONZE,STEEL AND ZINC |
|
HAND-WHEEL |
DUCTILE IRON/MALLEABLE IRON/CARBON STEEL |
|
BODY/BONNET/DISC |
CAST IRON/DUCTILE IRON/CI/DI/GG25/GGG40/GGG50/HT200/QT450 |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
