DIN Cast Steel Check Valve
| Price: |
US $ 38/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Technical specificationDesign standard: DIN 3356Face to face dimension: DIN 3202Flanged ends: DIN 2543-2545Test & inspection: DIN 3230
Featured material list: | NO. | Part name | Material |
| 1 | Body | GS-C25,1.4301,1.4401 |
| 2 | Seat | 1.4301,Stellite |
| 3 | Disc | 1.4021,1.4301+Stellite |
| 4 | Spring | 1.4301,1.4401 |
| 5 | Copper guide sleeve | Copper alloy,D2,BL2 |
| 6 | Metal gasket | Stainless steel |
| 7 | Cover | GS-25,1.4301,1.4401 |
| 8 | Nut | ASTM 194-2H,A194-8 |
| 9 | Double-headed bolt | ASTM 193-B7,A193-B8 |
Dimensions:| PN 16 |
| DN | Main connection size |
| L | D | D1 | D2 | b | f | H | n-Φd |
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 65 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 70 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 80 | 4-Φ14 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 85 | 4-Φ18 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 90 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 95 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 20 | 3 | 110 | 4-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 20 | 3 | 130 | 8-Φ18 |
| 100 | 350 | 220 | 180 | 158 | 20 | 3 | 155 | 8-Φ18 |
| 125 | 400 | 250 | 210 | 188 | 22 | 3 | 165 | 8-Φ18 |
| 150 | 480 | 285 | 240 | 212 | 22 | 3 | 215 | 8-Φ22 |
| 200 | 600 | 340 | 295 | 268 | 24 | 3 | 280 | 12-Φ22 |
| 250 | 730 | 405 | 355 | 320 | 26 | 3 | 305 | 12-Φ26 |
| 300 | 850 | 460 | 410 | 378 | 28 | 4 | 330 | 12-Φ26 |
| 350 | 980 | 520 | 470 | 438 | 30 | 4 | 390 | 16-Φ26 |
| 400 | 1100 | 580 | 525 | 490 | 32 | 4 | 470 | 16-Φ30 |
| PN 25 |
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 65 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 70 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 80 | 4-Φ14 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 85 | 4-Φ18 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 90 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 95 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 22 | 3 | 110 | 8-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 130 | 8-Φ18 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 155 | 8-Φ22 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 165 | 8-Φ26 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 215 | 8-Φ26 |
| 200 | 600 | 360 | 310 | 278 | 30 | 3 | 280 | 12-Φ26 |
| 250 | 730 | 425 | 370 | 335 | 32 | 3 | 305 | 12-Φ30 |
| 300 | 850 | 485 | 430 | 395 | 34 | 4 | 330 | 16-Φ30 |
| 350 | 980 | 555 | 490 | 450 | 38 | 4 | 390 | 16-Φ33 |
| 400 | 1100 | 620 | 550 | 505 | 40 | 4 | 470 | 16-Φ36 |
| PN 40 |
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 65 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 70 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 80 | 4-Φ14 |
| 32 | 160 | 140 | 100 | 68 | 18 | 2 | 85 | 4-Φ18 |
| 40 | 180 | 150 | 110 | 78 | 18 | 3 | 90 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 95 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 22 | 3 | 110 | 8-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 130 | 8-Φ18 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 155 | 8-Φ22 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 165 | 8-Φ26 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 215 | 8-Φ26 |
| 200 | 600 | 375 | 320 | 285 | 34 | 3 | 280 | 12-Φ30 |
| 250 | 730 | 450 | 385 | 345 | 38 | 3 | 305 | 12-Φ33 |
| 300 | 850 | 515 | 450 | 410 | 42 | 4 | 330 | 16-Φ33 |
| 350 | 980 | 580 | 510 | 465 | 46 | 4 | 390 | 16-Φ36 |
| 400 | 1100 | 660 | 585 | 535 | 50 | 4 | 470 | 16-Φ39 |
| Prod Model: |
H44H, H41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design And Manufacture: |
DIN 3356 |
| Face To Face: |
DIN 3202 |
| Flange End: |
DIN 2543 - 2545 |
| Test & Inspect: |
DIN 3230 |
| Material: |
Cast Steel |
| Connection Form: |
Flange |
| Structure: |
Swing |
| Application: |
Household Usage |
| Function: |
non return |

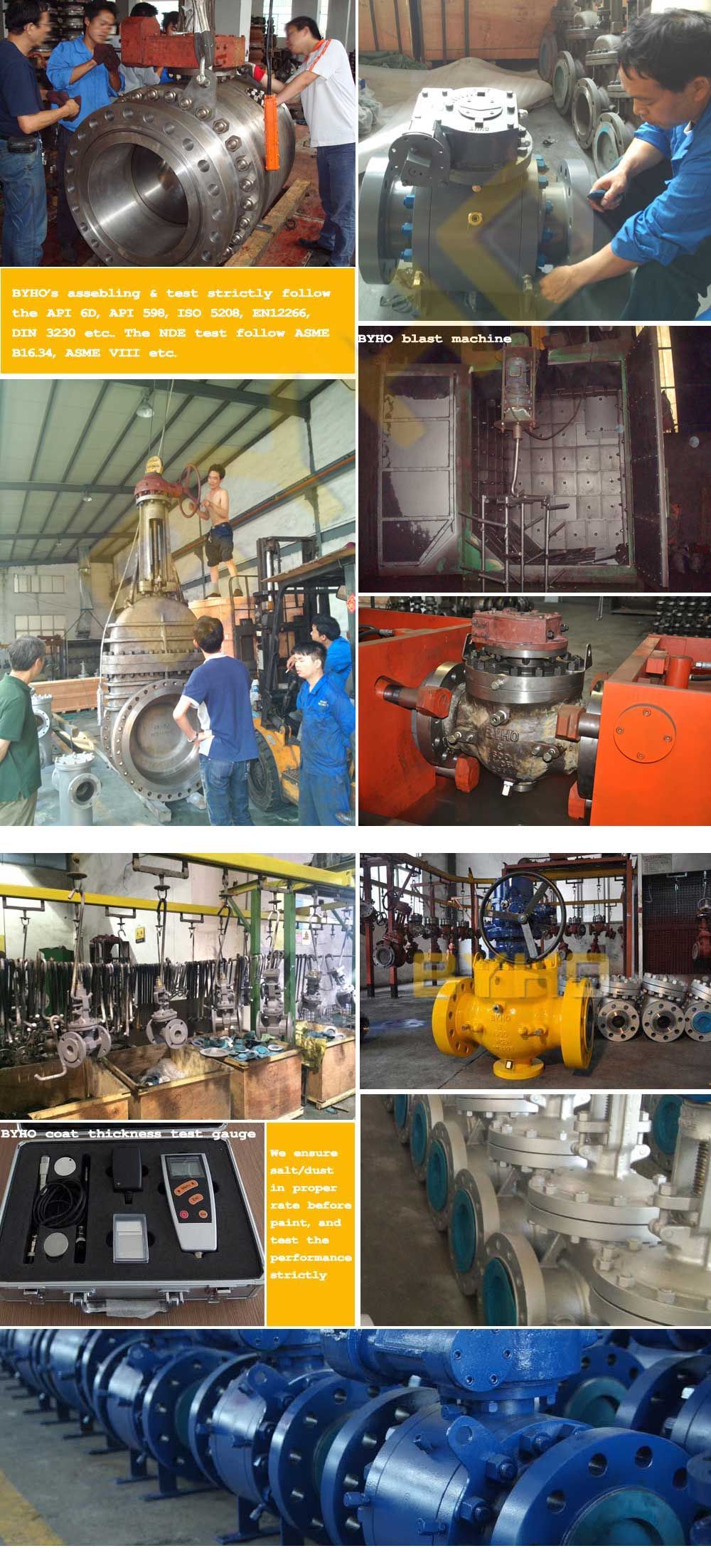

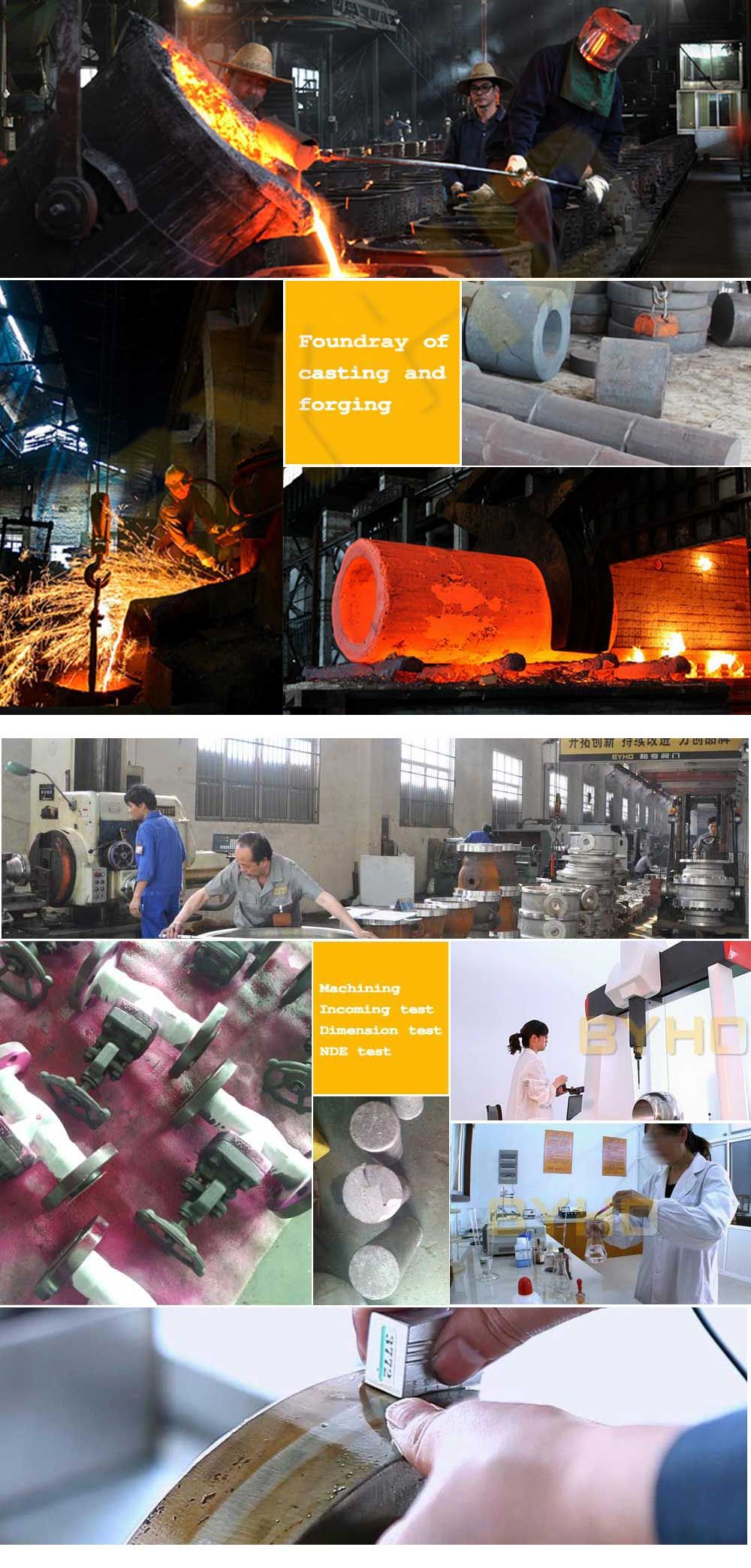

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
