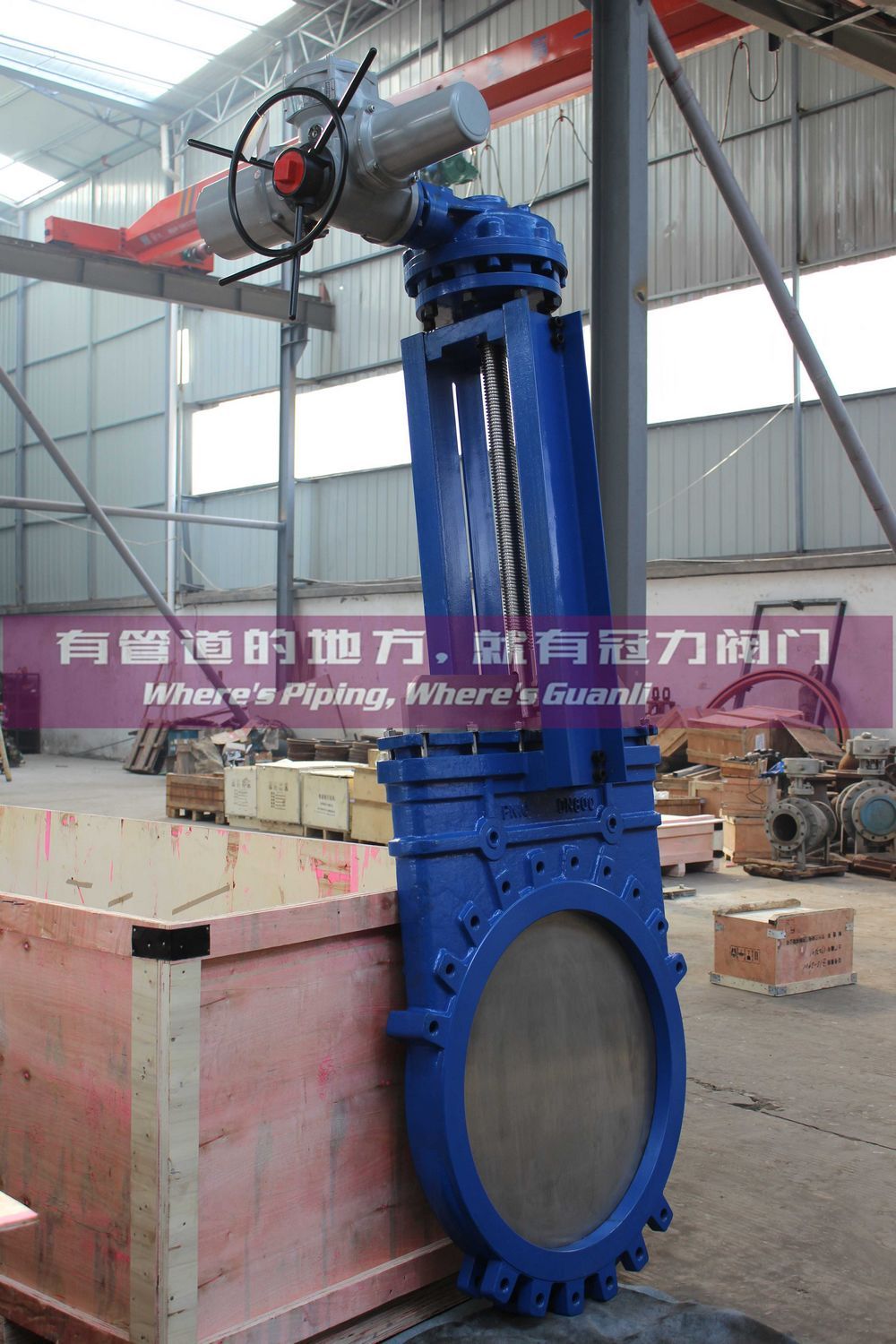

DIN Ductile Iron Knife Gate Valve with CE Certificate

DIN Ductile Iron Knife Gate Valve with CE certificate:

1. Material available: Ductile iron GGG40
2. Pressure rate: PN10
3. Size range:DN800
4. Operated type: Electric actuator
5. Seat:EPDM / NBR/ VITON/ METAL

1. Product name	DIN Ductile Iron Knife Gate Valve with CE certificate
2. Brand name	GL valve
3. Pressure	PN10&Class150&10K
4. Size	DN50-DN1200&2"-48"&50A-1200A
5. Body material	DI(GGG40)&SS(304,316)(solid solution treatment)
6. Gate material	SS304&SS316(solid solution treatment)
7.Seat material	EPDM&Metal&Viton&NBR
8.Packing material	PTFE
9.Support plate	A 36+epoxy plate
10.Operation	Handwheel, bevel gear, DA pneumatic, electric,etc.
11.Package	Plywood case
12.Payment	T/T, L/C, West union  30% before production, balance before shipment.
13.Quality	Every process is inspected by our QC team
14.Sample	Ready samples are available for inspection reference

Our Services



 1.Quality & Service:
    Our top priority has always been providing our clients with great quality products and superior customer service.
2.Quick Lead Time:
   We're dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.
3.Unbeatable Prices:
   We continuously strive to find ways of reducing our production costs, and passing the savings over to you!
4.Quantity Guarantee:
   Period 12 months from the date of shipment. If the valves determined to be defective, we will replace the defective part without charge .After warranty period, you are requested to pay for the labor charge.
FAQ
The following details should be dated in your enquiry:
1) Size
2) Class
3) Body Material
4) Trim Material (Internal parts)
5) Connection type
6) Operated type
7) Sealing face
8) Temperature
9) Medium
10) Design standard; Connection Standard
