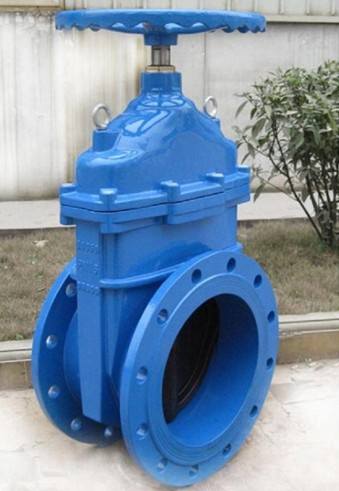

DIN Ductile Iron Resilient Seat Gate Valve with CE

Product Description
Specification:
1. ISO
2 Best quality
3. Factory

China Largest Valve Manufacturer Cast Iron metal seated Gate Valve

This kind of product have been used in the fields of petro-chem, pharma centicallnd and power Industry, etc. It is used by means of open and close on the pipes of steam, water and oil, etc.
METAL SEATED (NON RISING/RISNG STEM) GATE VALVE
GATE VALVE NRS BS5150 PN16
Design and manufacture conform to BS 5150/MSS SP-70
Flange dimensions conform to EN 1092-2/ANSI B16.1
Face to face dimensions conform to BS 5150& BS 5163 PN16/ANSI B16.1
Testing conform to BS6755/MSS SP-70/API 598
Component

No.

PART NAME

MATERIAL

1	Body	Cast iron, ductile iron
2	Body seat	Bronze, brass
3	Wedge seat	Bronze, brass
4	Wedge	Cast iron, ductile iron
5	Stem nut	Bronze,brass
6	Stem	Strainless steel
7	Gasket	Graphite
8	Bonnet bolt	Carbon steel
9	Nut	Carbon steel
10	Bonnet	Cast iron,ductile iron
11	Bolts	Carbon steel
12	Gasket	Graphite
13	Stuffing box	Cast iron,ductile iron
14	Packing	Graphite
15	Gland follower	Cast iron,ductile iron
16	Hand wheel	Carbon steel,ductile iron
17	Washer	Carbon steel
18	Hand wheel nut	Carbon steel


Production process
We are manufacture and have own factory and production lines.

We test the gate valve one by one
We have a sophisticated casting technology.
The gate valves are tested by 2 times before leaving our factory.
1.The fist time is in the assembly process, and valves are tested one by one.
2.The second time is before packaging, we use the method of spot check, 5%. Once found problems, 100% testing.
3.So we can guarantee 95%~98% zero-leaking.
