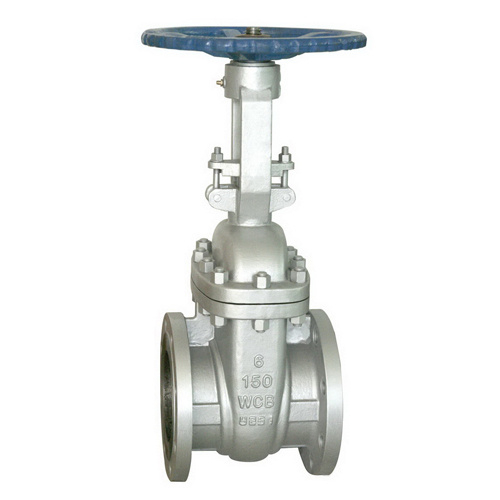

Name: Gate Valve/API 600 Cast Steel Class 150 Gate ValveSize of this Gate Valve: NPS 2"-48"
Pressure of this Gate Valve: Class 150-1500
Material of this Gate Valve: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M.
Design & Manufacture Std.: API 600, API603, BS 1414, ASME B16.34Face to Face Std.: API 6D, ASME B16.10, DIN 3202, BS2080End
Connection Std.: ASME B16.11, ASME B1.20.1, ASME B16.5, ASME B16.47, DIN2543-2551.
Test Standard: ISO5208, API 600, BS 6755.
Type: Rising Stem and Wedge Single Disc, Solid or Flexible wedge.
Operation: Hand wheel, Bevel Gear, Pneumatic, Electric.
|
Name |
Cast Steel Class 150 Gate Valve |
|
Size |
NPS 2"-48" |
|
Pressure |
Class 150-1500 |
|
Material |
WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M. |
|
Type: |
Rising Stem and Wedge Single Disc, Solid or Flexible wedge. |
|
Design&Manufacture Std |
API 600, API603, BS 1414, ASME B16.34 |
|
Face to Face Std |
API 6D, ASME B16.10, DIN 3202, BS2080 |
|
End Connection Std |
ASME B16.11, ASME B1.20.1, ASME B16.5, ASME B16.47 |
|
Test Standard |
ISO 5208, API 600, BS 6755. |
|
Operation |
Hand wheel, Bevel Gear, Pneumatic, Electric. |
Zhejiang def valve Co., Ltd. has been a member of China valve association and the network member of China petroleum & natural gas corp. For more than 20 years in manufacturing valves. Our company has a perfect quality management system certified by international certificates successively. Yongjia def valve Co., Ltd. imports the most advanced and specialized equipment from Japan. Meanwhile, our company cooperates with the valve institutes in Beijing of China, continuously adapts new techniques, new materials and new technology, and develops new products.
China yongjia def valve Co., Ltd. has acquired several patents in the valve industry, such as pressure balanced plug valve which meets national new technical patent. Our company has been awarded creative fund supported by technology department of China.
Over 90% of our products are exported to foreign countries and our annual output is more than 950 tons. Our markets are covering north America, Europe and the MID east, such as the u. S. A, the u. K., Italy, Australia, Indonesia, Kuwait, Czech, the Netherlands, and Spain. Due to the stringent quality control, excellent service and good reputation, our company has been known in worldwide.
