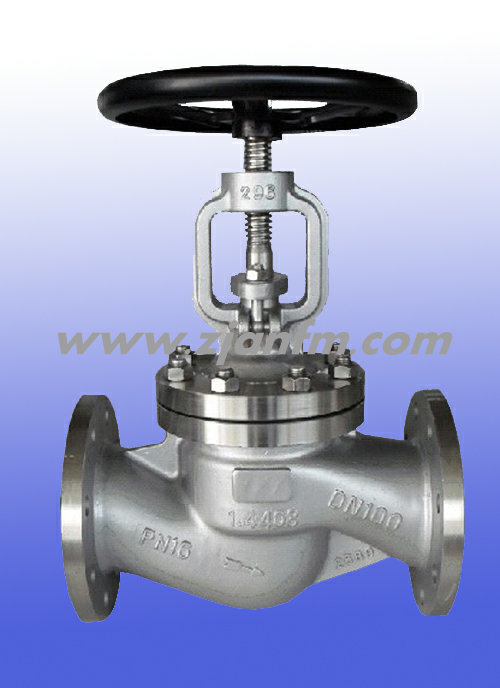

DIN Globe Valve

DIN Globe Valve
Price: Negotiable
Min Order: 1
Specifications
DIN Globe Valve
1. Tight shutoff
2. Non-rotating stem
3. Vertical globe valves
4. Low torque
DIN Globe Valve

Material:
Body and bonnet: WCB, LCB, WC6, WC9, C5, CF8, CF8M, CF3 and CF3M
Gasket: Stainless steel spiral wound/graphite or stainless steel spiral wound /PTFE
Stem: A182 F6, A350 LF2, A182 F304, A182 F316, A182 F304L and A182 F316L
Seat ring and disc: A105, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F304, A182 F316, A182 F304L and A182 F316L
Bonnet bolt: A193 2H, A194 4, A194 7 and A194 8
Stem packing: Graphite or PTFE
Hand wheel: Carbon steel or ductile iron
Gland flange: 1.7357(WC6), 1.4308(CF8)
Operation: Manual, Gear, Electric, pneumatic etc.

Technical Data:
Sizes: DN15mm~DN500mm
Pressure: 150Lb~1500Lb
Standard compliance: DIN 3840 and EN12516
Face to face: DIN3202 F4/F5 and EN558-1
End flange: DIN2543, EN1092,
Butt welding ends: DIN3239, EN12982
Inspection and test: Tested to APT598, BS6755
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.

Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.

Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
