DIN Globe Valve
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

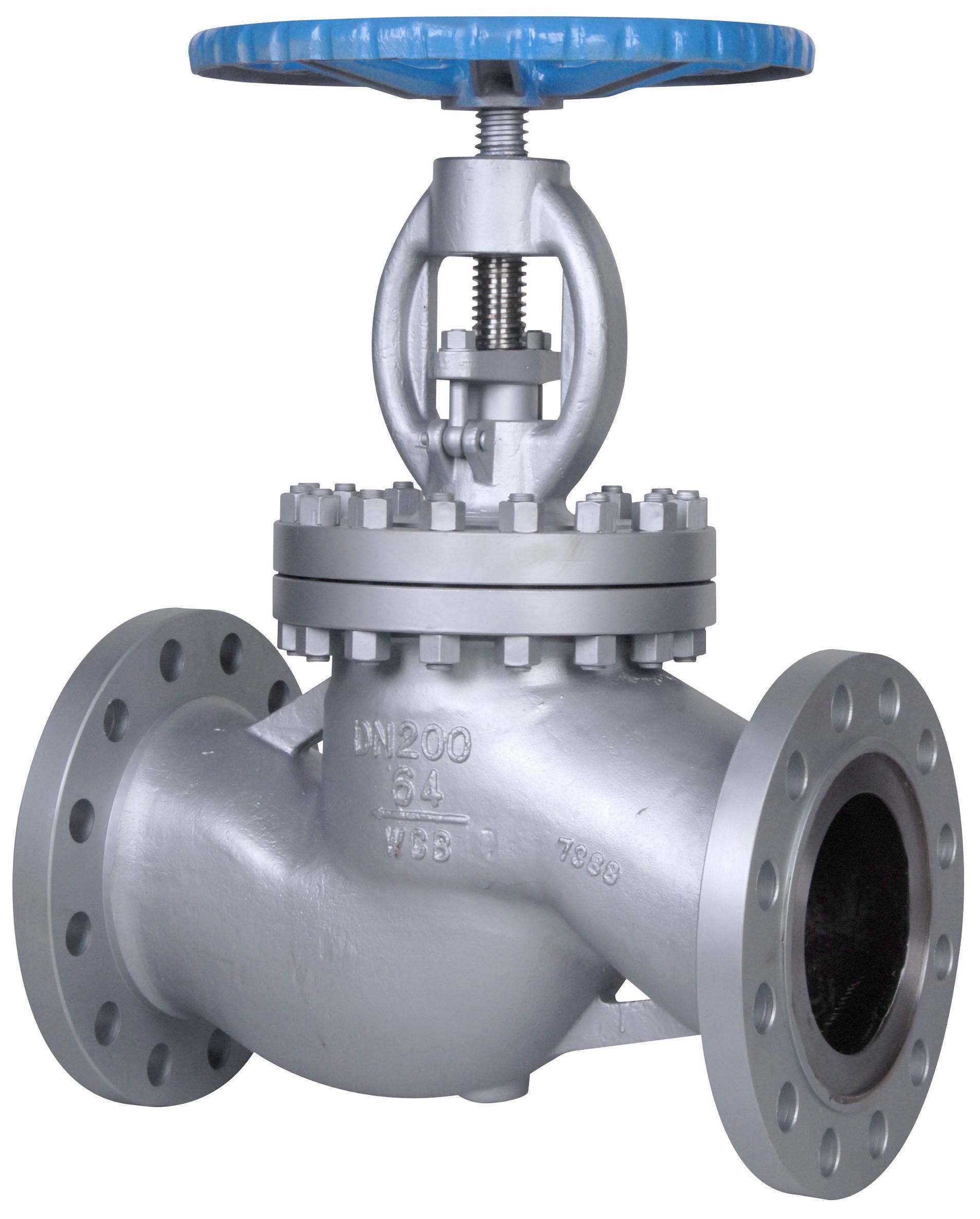

DIN Globe valve
Specification,
1. Design and Manufacture EN13709
2. Inspection and test, ISO 5208, EN12266
3. Flange end dimension, EN 1092-1, DIN 2544 PN25, DIN2545 PN64
4. Butt-welded ends diamension, EN12627
5. Face to face and end to end, DIN3202, EN 558-1, ISO 5752
6. Pressure-temperature rating, DIN2401
Chief features,
1. Streamline, outside screw and yoke
2. Bolted bonnet
3. Loose disc
4. Rising stem and handwheel
5. Yoke integral with bonnet
6. Available with gear operator
7. Flanged end
|
Rating / Size |
|
Class 150 – DN50 to DN600 (2” to 24” ) |
|
Class 300 – DN50 to DN600 (2” to 24” ) |
|
Class 600 - DN50 to DN400 (2” to 16” ) |
|
Class 900 - DN50 to DN250 (2” to 10” ) |
|
Class 1500 – DN50 to DN150 (2” to 6” ) |
|
Class 2500 – DN50 to DN150 (2” to 6” ) |
|
Standards |
|
|
Design Standard: |
ASME B 16.34, EN 12516-2, ASME Sec VIII, BS 1873 |
|
Face to Face: |
ANSI/ ISA 75.08, ASME B 16.10 |
|
Flange Drilling: |
ASME B 16.5, EN 1092, JIS B-2220, ASME B 16.25, ASME B 16.11 |
|
Testing: |
ASNI / FCI 70.2, EN 12266-1, ISO 5208, API-598 |
|
End Connection: |
F. F., R. F., RTJ, Buttweld, Socketweld, Screwed NPTF |
|
Materials |
|
|
Shell Materials: |
ASTM A216 Gr. WCB, ASTM A216 Gr. WCC, ASTM A217 Gr. WC1, ASTM A217 Gr. WC4, ASTM A217 Gr. WC5, ASTM A217 Gr. WC6, ASTM A217 Gr. WC9, ASTM A217 Gr. C5, ASTM A217 Gr. C12, ASTM A351 Gr. CF3 ASTM A351 Gr. CF8, ASTM A351 Gr. CF3M, ASTM A351 Gr. CF8M, ASTM A351 Gr. CF8C, ASTM A351 Gr. CN7M, ASTM A351 Gr. CD4MCu, ASTM A352 Gr. LCB, ASTM A494 Gr. N-12MV, ASTM A494 Gr. CW - 12MW. |
|
Trim Materials: |
410, 304, 316, 304 L, 316 L, 321/347, MONEL, CA-6NM |
|
Trim Materials Cast: |
ASTM A 217 Gr. CA 15, ASTM A 315 Gr. CF8, ASTM A 351 Gr. CF8M, ASTM A 351 Gr. CF3,
ASTM A 351 Gr. CF3M, ASTM A 351 Gr. CF8C, ASTM A 494 Gr. M-35-1, ASTM A 743 Gr. CA6NM |
|
Wrought: |
ASTM A276 Type 410, ASTM A276 Type 304, ASTM A276 Type 316, ASTM A276 Type 304L,
ASTM A276 Type 316L, ASTM A276 Type 321/347, ASTM B164 Type 4400 |
|
Features |
|
Available in manual operated & actuated control Valve |
|
Hard Facing on critical parts |
|
Material certification as per EN 10204-3.1, EN 10204-3.2 (Third Party Inspection) & NACE MR-01-75 |
|
Trim Design available in contour Top guided, pressure Balance, Trim, Pilot Operated Trim etc |
|
Available in Bellow sealed design |
|
Suitable for High pressure, high temperature as well as general applications |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
as Per Your Requrest |
| Pressure: |
Pn 420 at Most |
| Type Of Connection: |
Flanged Ends |
| Trim Material: |
13cr |
