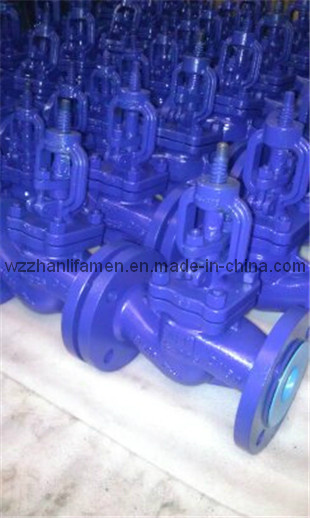

DIN Globe Valve

Price:	US $ 999.99/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Wenzhou Zhanli Valve Co., Ltd.

Showroom Product Company Profile

DIN Globe Valves are suitable for the pressure from PN1.6 to 16MPa. It can work in the medium of -29 degree celsius to 425 degree celsius combustible, explosive, toxi, fluid, heat-conducting oil and liquid ammonia. Application: Petrochemical industry, Chemical Fiber Textiles, plastic, paper making, power industry, steel, rubber and gas systems. The performances is very reliable.
Rational Structures, Reliable Sealing, Zero Leakage of Stem.

Details are below:
1. Technical Specifications:
(1)Design Standard: DIN EN 13709-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003
2. Performance Specifications: Please consult the tables below.
3. Main Parts and Materials: Please consult the tables below.
4. Main Sizes and Dimensions: Please consult the tables below.
If this product interests you, please feel free to contact with us!
Quality first, reputation uppermost!

Performance Specifications
Nominal Pressure		1.6MPa	2.5MPa	4.0MPa
Pressure Test	Intensity Test	2.4MPa	3.75MPa	6.0MPa
	Back Seal Test	1.76MPa	2.75MPa	4.4MPa
	Seal Test	1.76MPa	2.75MPa	4.4MPa
	Gas Test	0.6MPa	0.6MPa	0.6MPa
Suitable Temperature				(-)29-425ºC
Suitable Medium				W.O.G

1.Body	GG GS-C25,CF8,CF8M	7.Bonnet	GG GS-C25,CF8,CF8M	13.Nut	A1942H,A194-8
2.Disc	GS-C25,CF8,CF8M	8.Packing	Flexible Graphite	14.Oil Cup	Brass
3.Stem	13Cr,F304,F316	9.Pin	C.S SS304 SS316	15.Stem Nut	Bronze,304,316
4.Gasket	Flexible Graphite+304	10.Gland	GS-C25 SS304 SS316	16.Bearing Cap	A105,F304,F316
5.Bolt	A193-B7,A193-B8	11.Gland Cover	1.2291	17.Handwheel	A105,F304,F316
6.Nut	A1942H,A194-8	12.Key Bolt	A193-B7,A193-B8	18.Lock Nut	25# ss304 ss316

Size		DN40	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
L	PN16	240	250	290	310	350	400	450	550	650	750
	PN25	240	250	290	310	350	400	450	550	650	750
	PN40	240	250	290	310	350	400	450	550	650	750
D	PN16	150	165	185	200	220	250	285	340	405	460
	PN25	150	165	185	200	235	270	300	360	425	485
	PN40	150	165	185	200	235	270	300	375	450	515
D0	PN16	110	125	145	160	180	210	240	295	355	410
	PN25	110	125	145	160	190	220	250	310	370	430
	PN40	110	125	145	160	190	220	250	320	385	450
D1	PN16	88	102	122	138	158	188	212	268	320	378
	PN25	88	102	122	138	162	188	218	278	335	395
	PN40	88	102	122	138	162	188	218	285	345	410
g	PN16	18	18	18	20	20	22	22	24	26	28
	PN25	20	20	22	24	24	26	28	34	36	40
	PN40	20	20	22	24	24	26	28	34	38	42
f	PN16	3	3	3	3	3	3	3	3	3	4
	PN25	3	3	3	3	3	3	3	3	3	4
	PN40	3	3	3	3	3	3	3	3	3	4
nXd	PN16	4×18	4×18	8×18	8×18	8×18	8×18	8×22	12×22	12×26	12×26
	PN25	4×18	4×18	8×18	8×18	8×22	8×26	8×26	12×26	12×30	16×30
	PN40	4×18	4×18	8×18	8×18	8×22	8×26	8×26	12×30	12×33	16×33
H	PN16	325	335	370	415	485	515	600	730	890	1050
	PN25	325	335	370	415	485	515	600	730	890	1050
	PN40	325	335	370	415	485	515	600	730	890	1050
W	PN16	200	250	250	250	300	350	400	450	500	600
	PN25	200	250	250	250	300	350	400	450	500	600
	PN40	200	250	250	250	300	350	400	450	500	600

Prod Model:	J41H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Pressure:	1.6mpa, 2.5mpa.4.0mpa
Nominal Diameter:	1/2''-16''
Materials:	Wcb, GS-C25, Steel
Structure:	Through Way Globe Valve
Sealing Form:	Gland Packings Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve
Application:	Normal Valve
Standard:	DIN

Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.

We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.

Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …

We purchased advanced machines & equipments, employed a qualified & skillful technical workers.

Welcome to inquire us. We will do our best to give you the best services!
