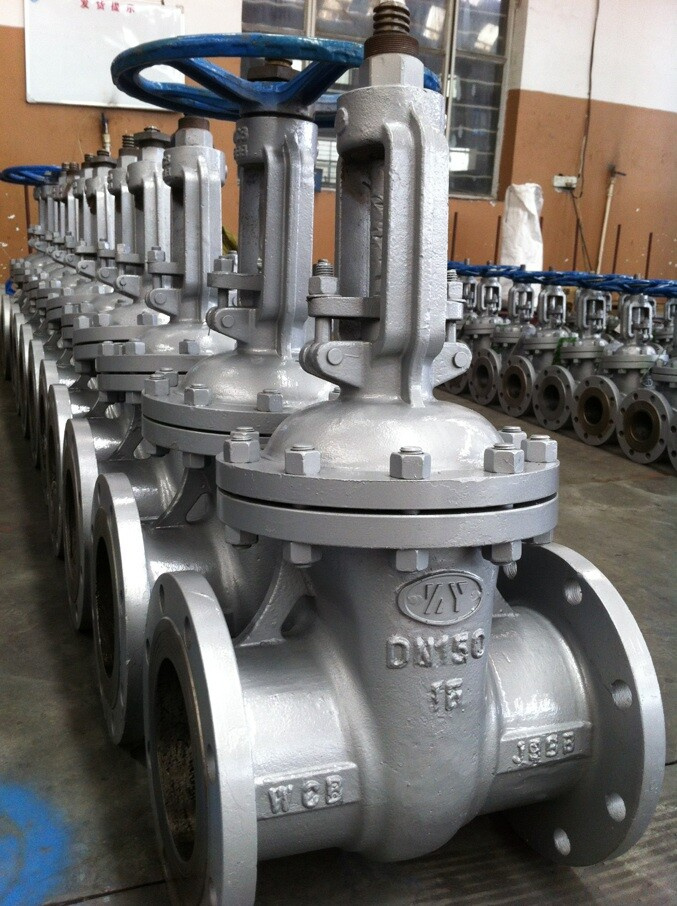

DIN Metal Sealed Gate Valve(WCB A216)
1. Full port, outside screw and yoke
2. Bolted bonnet
3. Flexible wedge, and fully guided
4. Rising stem and non-ring handwheel
5. Available with gear operator
6. Flange ends
7. Butt-welding ends
Standards:
1. Design and manufacturing: API600, API6D, GB12234, DIN EN 12288-2003
2. Flange dimension: ANSI B 16.5, JB/T79, GB9113, DIN EN 1092-1: 2002
3. Pressure and temperature: ANSI B 16.34
4. Face to face dimension: ANSI B 16.10, GB12221
5. Butt welded dimension: ANSI B 16.25
6. Test and inspection: API598 JB/T9092, DIN EN 12266: 2003
2. Technical Specifitions:
(1)Design Standard: DIN EN 12288-2003
(2)Face to Face Dimensions: DIN EN588-1: 1995
(3)End Flange Dimension: DIN EN 1092-1: 2002
(4)Test Standard: DIN EN 12266: 2003
|
