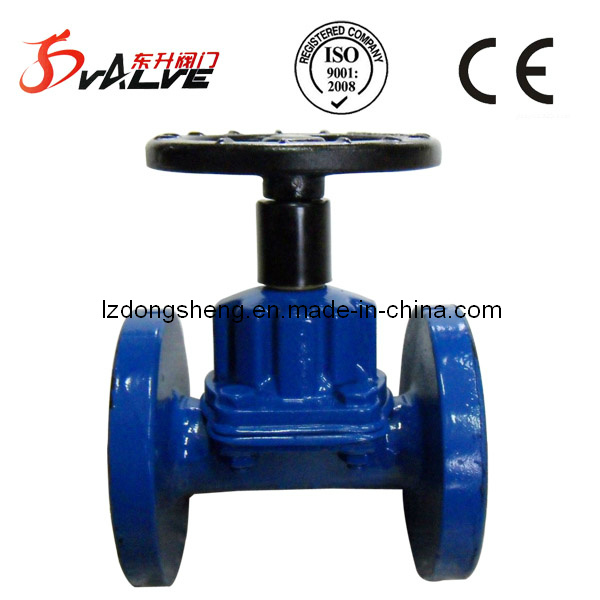

DIN Nr Diaphragm Valve

DIN Nr Diaphragm Valve
Price: US $ 1.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

DIAPHRAGM VALVE

DESCRIPTION:
1.Working pressure: DN50-DN125     1.0Mpa
                                      DN150-DN200   0.6Mpa

                                      DN250-DN300   0.4Mpa

2. Working temperature: NBR:-20°C ~ +60°C

3. Face to face: EN588-1

4. Flange standards: EN1092-2,BS4504 etc.

5. Testing: DIN3230,API598

6. Medium: Cement, Clay, Cinder, Granular fertilizer and so on solid fluid, Fresh Water, Sea water, inorganic acid and alkaline liquid etc.

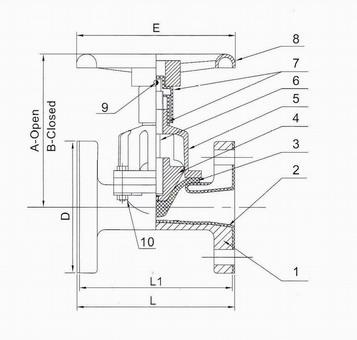

NO. PART MATERIAL
1 BODY Cast iron GG25/Ductile iron GGG40
2 BODY LINED NATURAL RUBBER
3 DIAPHRAGM NATURAL RUBBER
4 VALVE CLACK Ductile iron GGG40
5 BONNET Ductile iron GGG40
6 STEM STAINLESS STEEL
7 BUSH PLASTIC
8 HANDWHEEL Ductile iron GGG40
9 PIN CARBON STEEL
10 BOLT STAINLESS STEEL

Prod Model: G41X-16Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Range: Dn50-Dn400
Valve Body Material: Cast Iron or Ductile Iron
Working Temperature: Natural Rubber -20degrees Celsius-60degrees Celsiu
Suitable Medium: Water,Liquid,Steam
Material: Cast Iron
Structure: Through Way Diaphragm Valve
Actuator: Manual
Function: Field Bus
Connection: Flanged Diaphragm Valve
Standard: as Per Your Request
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.

We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.

We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
