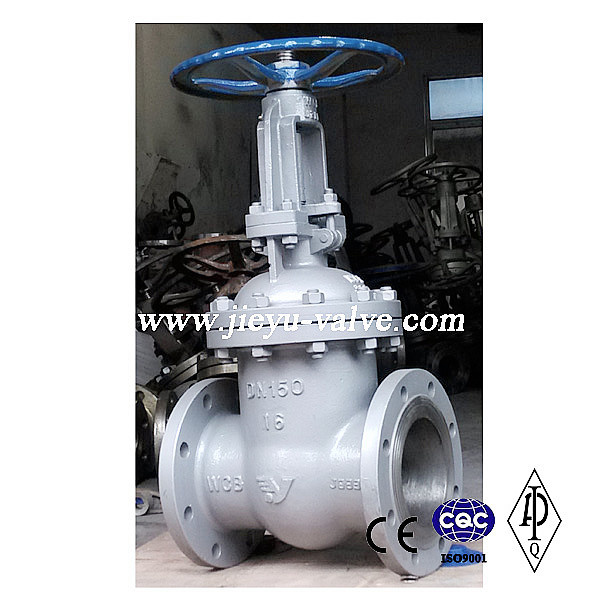

DIN Rising Stem OS&Y Gate Valve wenzhou manufacturer
Specification:
Size: DN15-DN1200
Model: Z40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C),Etc
Type: Rising Stem and Wedge Single Disc, Solid or Flexible wedge, flat gate.
Operation: Handwheel, gear worm, Electric operated
Standard:
Design & Manufacture Std.: GB/T12234, DIN3352, GOST 12820-80, Etc.
Face to Face Std.: GB/T12221, DIN3202, Etc.
End Connection Std.: JB/T79, DIN2543-2550, GOST 12820-80, Etc.
Test Standard: ISO5208, API 600, BS 6755
| NO. | Part Name | Material |
| 01 | Body | ASTM A216WCB | GS-C25,CF8,CF8M |
| 02 | Seat Ring | ASTM A216+13Cr |
|
| 03 | Wedge | ASTM A216+13Cr |
|
| 04 | Stem | ASTM A276 420 | 13Cr.F304,F316 |
| 05 | Gasket | 304+Graphite | GS-C25,CF8,CF8M |
| 06 | Bonnet | ASTM A216WCB |
|
| 07 | Stud | ASTM A193 B7 | ASTM A193-B8 |
| 08 | Nut | ASTM A194 2H | ASTM A194-8 |
| 09 | Backseat | ASTM A216+13Cr |
|
| 10 | Stud | ASTM A193 B7 |
|
| 11 | Nut | ASTM A194 2H |
|
| 12 | Yoke | ASTM A216WCB |
|
| 13 | Packing | Graphite |
|
| 14 | Pin | ASTM A276 410 | C.S SS304 SS316 |
| 15 | Gland Bolt | ASTM A193 B7 |
|
| 16 | Gland Nut | ASTM A194 2H |
|
| 17 | Bushing | ASTM A276 410 |
|
| 18 | Gland | ASTM A216WCB |
|
| 19 | Bearing | ASTM A29 | A105,F304,F316 |
| 20 | Stem Nut | ZcuAl10Fe3 Bronze | Bronze,SS304,SS316 |
| 21 | Lubricator | Cu | Brass |
| 22 | Retaining Nut | C.S |
|
| 23 | Handwheel | ASTM A47 | A105,F304,F316 |
| 24 | H.W. Lock Nut | C.S | 25#,SS304,SS316 |
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.
JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on
JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.
JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
