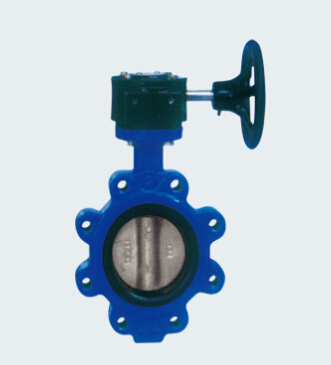

DIN Worm Gear Butterfly Valve with High Quality

DIN Worm Gear Butterfly Valve with High Quality
Price: US $ 98.25/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: T/T,Western Union
Packaging & Delivery
Packaging Detail: Export standard packing, plastic bag, wooden case
Delivery Detail: 10~45days
Specifications
Worm Gear Wafer Type Industry Butterfly Valve
DN40-600, PN10/16;
Meets DIN, ANSI, BS, JIS
EPDM seat, ISO5211 top flange
Worm Gear Wafer Type Industry Butterfly Valve
Size: DN40-600mm
Rating: PN10/16, ANSI125/150
Design Standard: API609;
Material of main parts:
Body: Cast iron, ductile iron, stainless steel, cast steel (WCB), GGG40
Disc: Monel, ductile iron, stainless steel, ductile iron with nylon coated
Seat: EPDM or NBR or PTFE
Body Flange Drilling Body: DIN2505; ANSI125/150; BS4504; JIS B2210; AS2129;
Tope Flange: ISO5211
Face to Face: ISO5752; API609; MSS SP-67;
Test Inspection: API598;
Suitable Medium: Water, Sewage, Air, Oil, Salty, etc.
Operations: Lever, Worm gear, Electric Actuator and Pneumatic

Typical Applications:
Heating air-conditioning systems; Water purification system; Mining industry;
Shipbuilding; Chemical industry; Food industry; Oil and gas industry, Fire extinguishing system, Natural Gas Applications

What can we do for you?
1. We are directly butterfly valve factory in Tianjin, only 2 hours away from Beijing by car.
2. We have more than 150 body moulds for you to choose!
3. Each valve is taken for two times test pressure before leave factory! Every butterfly valve has 24 months guarantee period.
4. We welcome sample orders for as few as 1 set.
5. We supply the reliable material suggestion according to different working conditions.

Package: Usually packeg with plywood, we can make the packing ACCORDING TO YOUR REQURIEMENT, and if the packing cost is different with plywood case, the price will adjust together, more or less.
Prod Model: D343H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn(Mm): 100-1600
Connection Form: Wafer
Work Pressure: Mid-Pressure (',2.5mpa< Pn <6.4mpa)
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Household Usage
Material Of Seal Surface: Metal Hard Sealed
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
