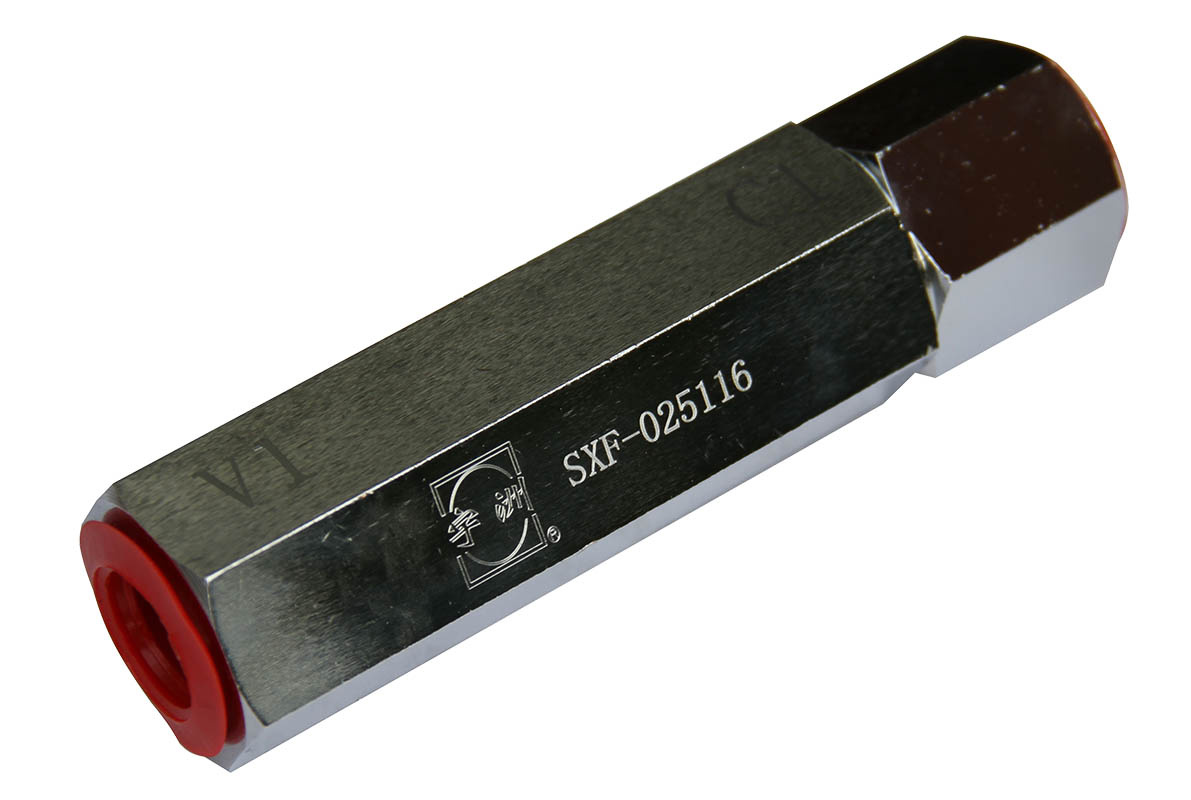

Home Valve Products Direct Acting Poppet Type, Can Replace Bosch Rexroth (VSQ-30-LM)

Direct Acting Poppet Type, Can Replace Bosch Rexroth (VSQ-30-LM)

Direct Acting Poppet Type, Can Replace Bosch Rexroth (VSQ-30-LM)
Price: US $ 100/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
It's same as BOSCH REXROTH (VSQ-30-LM) G1/2
Applications
They are employed to control the sequence of two or more cylinders or motors, when the second actuator must be allowed to move only after the first actuator has performed a certain function. The incorporated check valve allows free reverse motion without specific control of the sequence.

Description
they are composed by a relief valve (opening "B-A") with hydraulic dampening, and by a reverse flow annular check valve "A-B". Initially the flow goes to a first line connected in parallel to the B side, not shown here, and pressure increases until reaching the selected relief set- ting; then the relief valve opens and the second circuit is supplied out of A port, while the actuator connected to the B side remains pressurized. The incorporated check valve allows the reverse motion of the actuators which happens without specific control of the sequence, only depending from the load/pressure conditions.Note that pressure at A needed to operate the second actuator is additive to the relief setting, and, for this rea- son, this valve is successfully employed to energize a secondary actuator which only requires low pressure.


Basic datasheet:
Max working pressure:    350 bar
Max  flow rate:       80L/min (80 lpm)
Spring adjustable pressure:30Bar to 130Bar

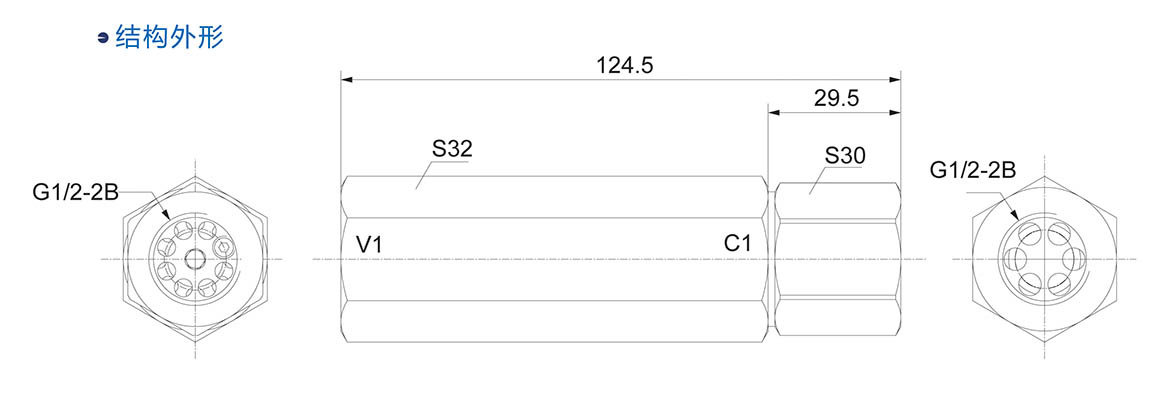

Dimensions

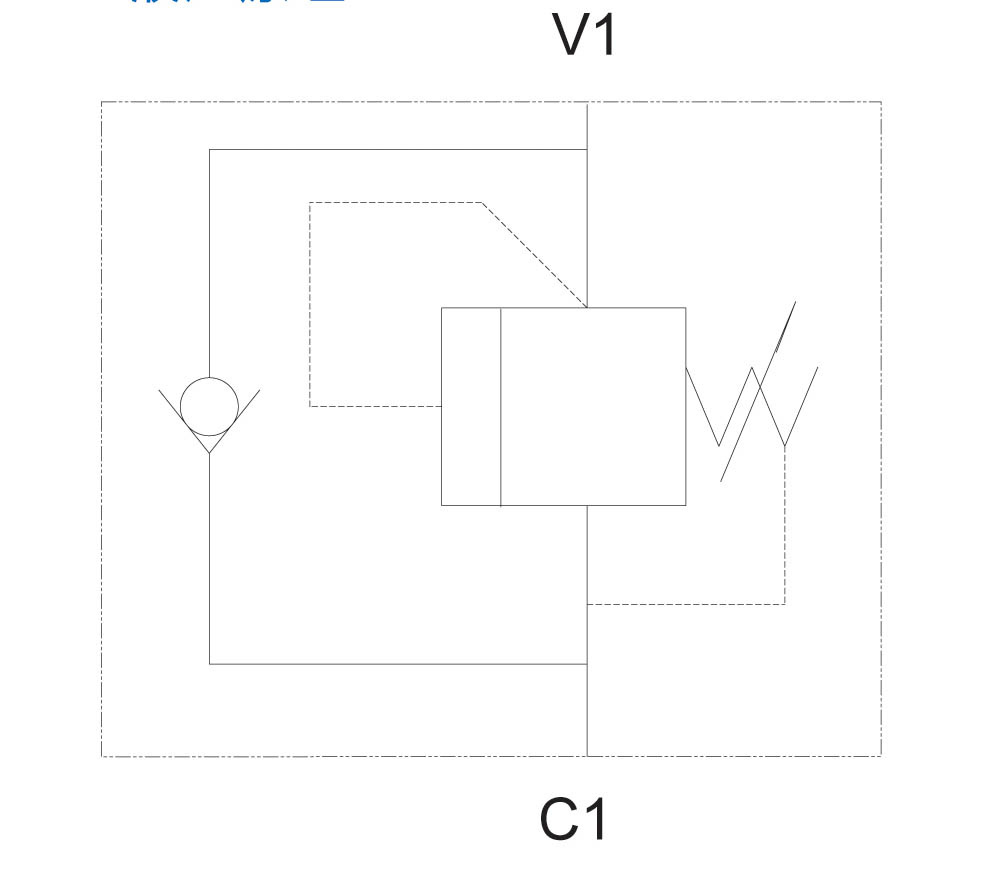

symbols

Yuzhou have own R&D department,we can special design the valves for your application.
Choosing YUZHOU hydraulic is choosing high quality!
Prod Model: SXF-052116
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Hydraulic Control Unit
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc

50000 + M² Factory area,

30+ Senior experts and engineers R&D team

20+ Quality control

60+National Patent and 30 innovation patent

200+ Staff

In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.

Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.

Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
