Home Valve Products Directing Acting Small Solenoid Valve for Water & Air

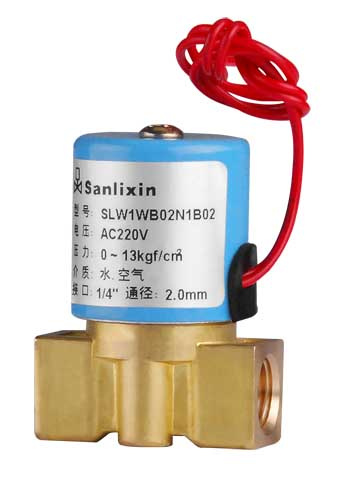

Directing Acting Small Solenoid Valve for Water & Air

Directing Acting Small Solenoid Valve for Water & Air
Price: US $ 6.00/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Contact Person:

Jessica TEL: 0086-574-62636060 MOBILE: 0086-13777166585
Vivian TEL: 0086-574-62640822 MOBILE: 0086-13967833354
Devin TEL: 0086-574-62559181 MOBILE: 0086-15888035074



Solenoid Valve (SLPM Series)

1. SLW Series normally closed
2. Closed when de-energized open, open when energized
3. Body material: Brass or stainless steel
4. Response time: 6-20ms
5. Seals: NBR / VITON / EPEM
6. Media: Pure water, air
7. Max working pressure: 30bar
8. Fluid temp: 0~100 ambient temp.: 10~40
9. Voltage: AC220V AC110V AC24V 50/50HZ DC24V DC12V
10. Power consumption: AC 6.8va hold DC5W
11. Coil class: Class B 130 100%ED
12. Lead wire coil, coil length: 30cm
13. Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction. Fixed hole on the bottom 2-m4
Prod Model: SLW1B02E9AC1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1.2mm~2mm: 1/8''~M5
Type: Direct Acting
Connection Form: Thread
Valve Structure: Direct Action Diaphragm Structure
Application: Household Usage
Power Supply: AC & DC Solenoid Valve
Usage: on & off
Material: Brass & Ss316
Yuyao Sanlixin Solenoid Valve Co., Ltd. Specializes in designing and manufacturing all kinds of fluid solenoid valve, angle seat valve, electric valve and drafting of the national industrial fluid solenoid valve safety standards. Since 1993, our company has been developed greatly through the efforts from the staffs and great cooperation from the big distributors and related companies. A lot of sales chain stores and offices have been established at the main cities in the whole country basically, which can provide you with services of before-sale and after-sale. We have set up a sales and a services center in U. S. A., France, Poland, Russia, Vietnam, Australia, Indonesia for our Sanlixin products. Meanwhile, we have been authorized the general agency in China by GC VALVES from USA.

Our company has superior mechanical equipment, advanced processes, complete test methods, well business qualifications. Some specific and new products can be developed, made, consulted about the techniques by our company if you have some requests. In 2001, our company passed ISO9001: 2008 certification, and some of our products have passed TUV, CE approval.

We regard " science and technology for the first, quality for the basis, customer for the center and creating famous brand " as our management aim, and meet our customers' needs continuously, strive for mutual developments so that the industrial automation can be push forward further.
