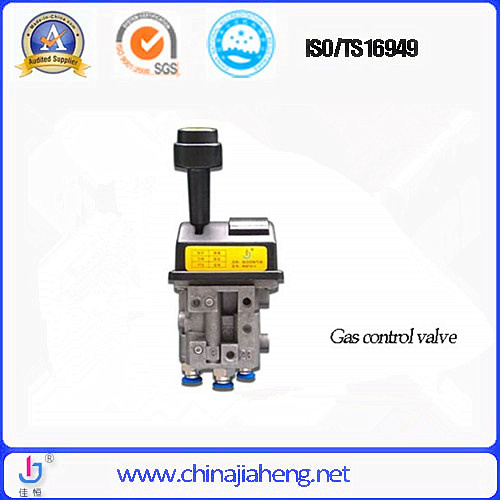

Gas Control Valve for Hydraulic System
Specification
1) Life time: Minimum 40, 000 cycles.
2) Dimensional checking: 100% according to ISO9001.
3) Leakage testing: 100% (in open and close position).
4) Outlet flow testing: 100%
5) Life cycle testing: 0.05% per shipment.
6) High-low temperature testing: 0.05% per shipment.
Features
1. It is bi-directional operation valve with function of lifting, declining and stoping.
2. When using hydraulic valve with the function of decline, body falling speed can be controlled by changing the Angle of the joystick.
3. Easy to install in the cab
4. Symbols on the valves instruct easy operation.
Quality Control
1. Our products have to pass strict quality control from purchasing materials, processing, assembling. (We passed the certification of ISO/ TS 16949: 2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding with CO2 arc and automatically girth welding, which can ensure the welding Quality of the seal parts
Our design
|
model |
JHQF-34BQK |
|
hydraulic tube fittings |
G1" |
|
peak pressure |
35MPa |
|
pneumatic pressure |
0.6~1MPa |
|
max discharge |
220L/min |
|
"T" point pressure |
1.5MPa |
|
valve size |
25mm |
|
Filtration precision |
≤25μm |
|
rated pressure |
19~22MPa |
|
viscosity |
12~100mm2/s |
|
temperature |
-25~80 centigrade |
|
weight |
6.4Kg
|
Hubei Jiaheng Technology Co., Ltd located at Yunxian economic development. Our company is keen to develop and produce all kinds of hydraulic system products, hydraulic cylinder set, pump truck hydraulic(arm support and pump over), truck mounted crane cylinder, mining hydraulic prop, enlarge frame set and hydraulic system.
Our annual output value above 800 million yuan, anual production capacity of 220000 sets, front telescopic hydraulic cylinders achieve the ability 400units/day, with an annual 120000 units, abdominal lift hydraulic cylinder 40000units, verious types of pump amplitude, telescopic outrigger hydraulic cylinder 10000units, various types of loader, excavator hydraulic cylinders 50000sets.
"Jiaheng" brand hydraulic products has leapt to the leading position in domestic industry three consecutive years. Products reconginzed and praised by more than 100 China several well-known medium and heavy vehicle refitting enterpriese, established a strategic partnership, like XCMG, ZOOMLION, CIMC, SUNHUNK, FOTON, DONGFENG, CAMC, SINOTRUCK, LOXA, Iveco (Shanghai), North Benz. Jiaheng products has spread more than 30 provinces and exported to Russia, Ukraine, Philippines, Thailand, Pakistan, Kazakhstan, Korea and some Middle East countries.
Jiaheng welcome your inquire and visit.
