Directional Solenoid Namur Valve
| Price: |
US $ 4.9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
FEATURESDirectional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into different paths from one or more sources.
Valve boies are mirror finished and Hard oxidation.
Low power consumption, fast response, import oils seals with longer service life.
Coils with DIN connection or flying leads. SPECIFICATIONS | Drive Type | Pilot & Solenoid |
| Mount | Inline or Manifold |
| Wiring | DIN Connector with LED |
| Insulation | F Class |
| Water/Dust Protection | IP65 |
| Override | Manual, Locking (3V, 4V Series) |
| Pressure | 22 - 116 PSI (1.5 - 8 Bar) |
| Temperature | -5~50 Celsius degree (41 - 122 Fahrenheit degree) |
| Voltage Tolerance | ¡À10% of Rated Voltage |
| Highest Action Frequency | 6 cycles/sec |
| Model | Description | Thread | Flow (Cv) | Voltage |
| 4M210-06 | 2 way 5 position Single Head | 1/8 | 0.78 | DC 12V
DC 24V
AC 110V
AC 220V |
| 4M210-08 | 2 way 5 position Single Head | 1/4 | 0.89 |
| 4M220-06 | 2 way 5 position Double Head | 1/8 | 0.78 |
| 4M220-08 | 2 way 5 position Double Head | 1/4 | 0.89 |
| 4M230-06 | 3 way 5 position | 1/8 | 0.67 |
| 4M230-08 | 3 way 5 position | 1/4 | 0.67 |
| 4M310-08 | 2 way 5 position Single Head | 1/4 | 1.40 |
| 4M310-10 | 2 way 5 position Single Head | 3/8 | 1.68 |
| 4M320-08 | 2 way 5 position Double Head | 1/4 | 1.40 |
| 4M320-10 | 2 way 5 position Double Head | 3/8 | 1.68 |
| 4M330-08 | 3 way 5 position | 1/4 | 1.00 |
| 4M330-10 | 3 way 5 position | 3/8 | 1.00 |
| 4M410-15 | 2 way 5 position Single Head | 1/2 | 2.79 |
| 4M420-15 | 2 way 5 position Double Head | 1/2 | 2.79 |
| 4M430-15 | 3 way 5 position | 1/2 | 1.68 |
ADVANTAGE 1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7) After sales technique support

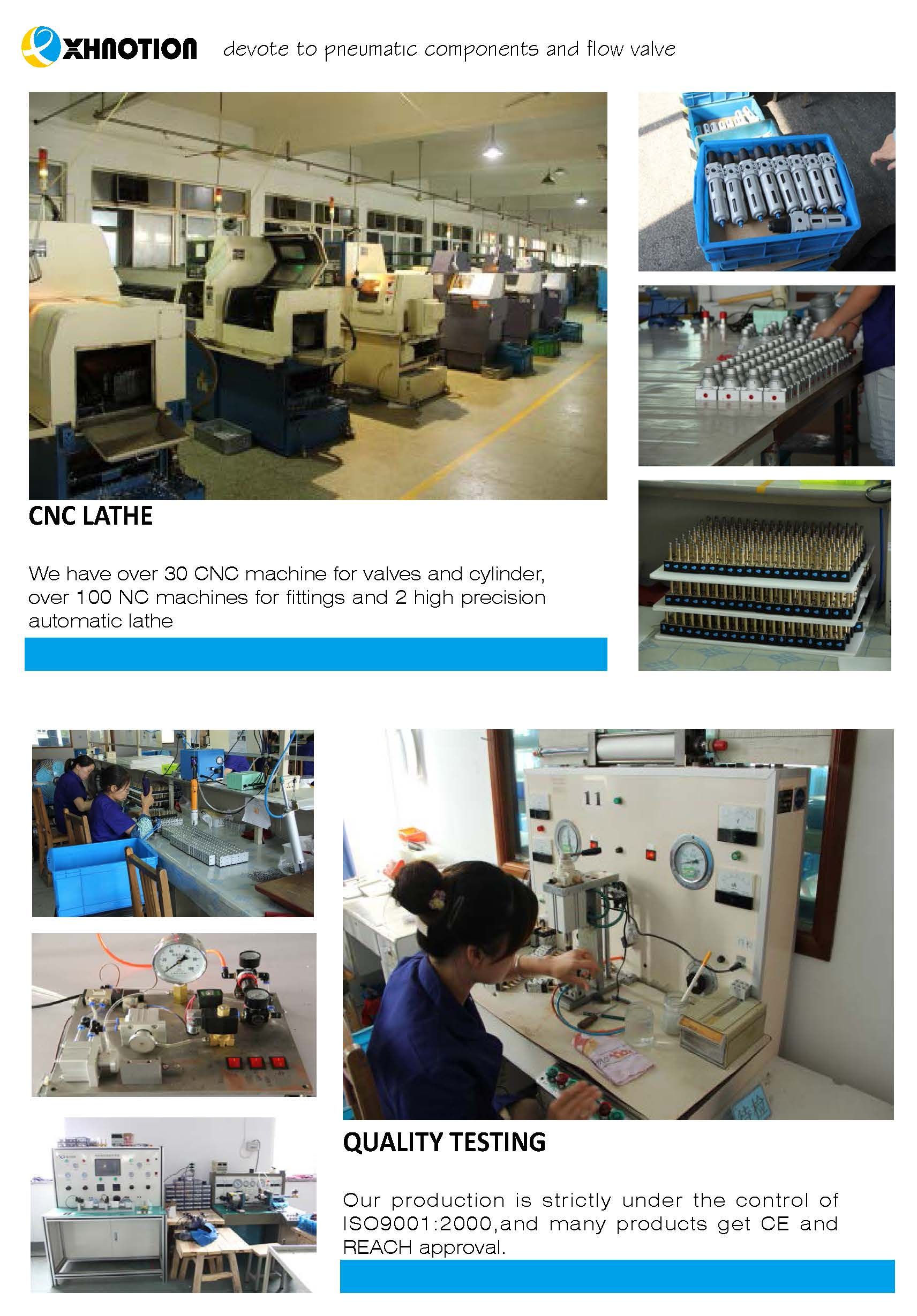

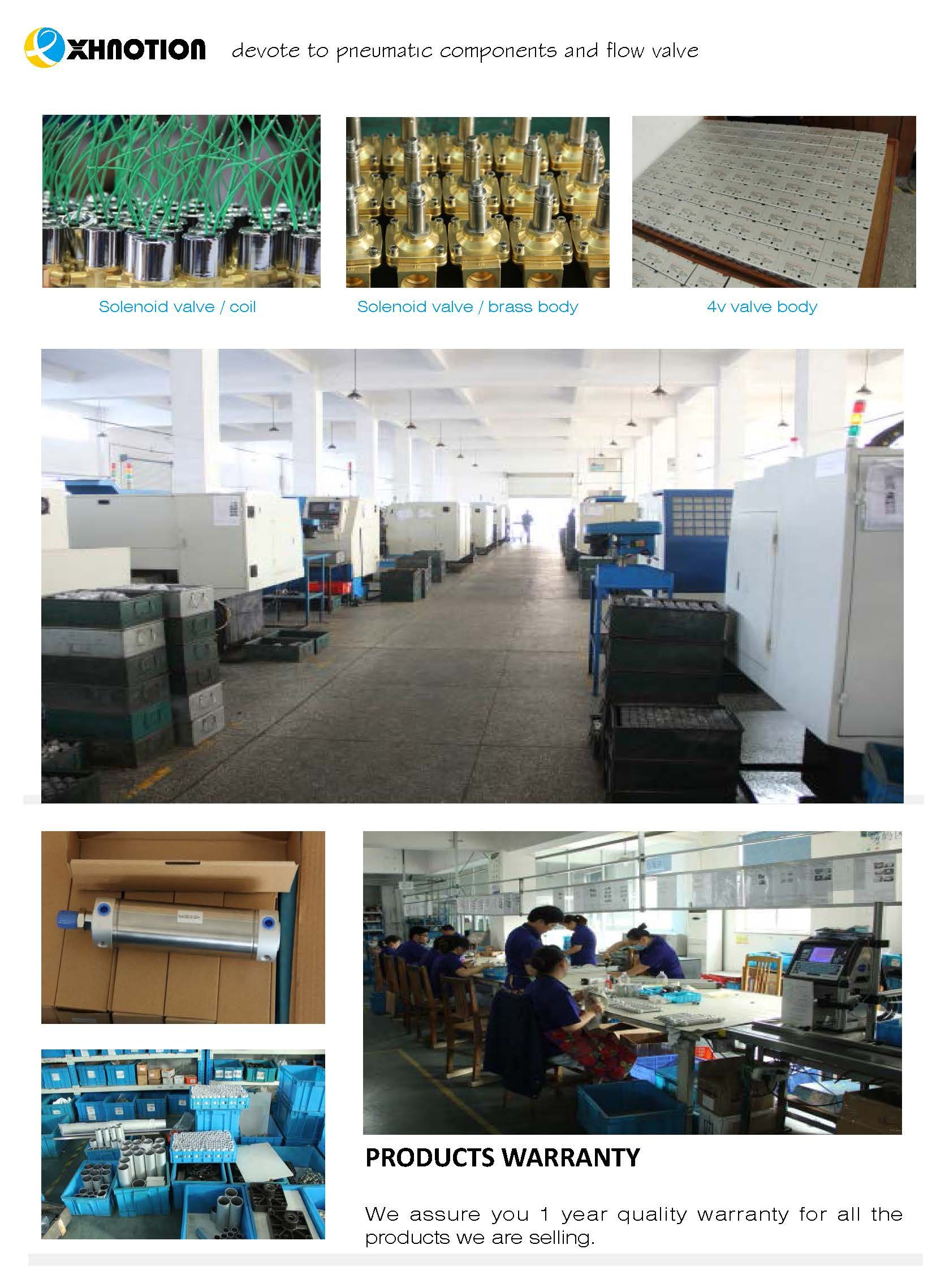

WORKSHOP SHOW
WHY CHOOSE US? 1) We offer one stop solution. Over 5000 items for you to save efforts and costs. 2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function. 3) We will reply you within 24 hours. 4) Whatever quantity you are requesting, we always offer you the best quality. 5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder. FAQ PackingTransparent plastic bag + white small box + neutral carton + palletCustom packaging are available, XHnotion brand packaging are available Shipping :Export port: Ningbo or Shanghai, ChinaShipping way: by sea, by air, by courierDelivery time 3 days to 30 days depends on actual orders. Payment TermsWe accept T/T, L/C, Paypal, western union,etc. Samples PolicyFor regular valve 1 pcs, free samples against your courier account or you pick up from us.For custom items, we will discuss by email. Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support. ==========================================================XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our directional control valve include below series. 4V series directional solenoid valve4A series directional pneumatic valve3V series directional solenoid valve3A series directional pneumatic valveMSV Mechanical directional pneumatic valve4F, FV series Foot pedal valve3R Hand pull valve/4H hand lever valveHV Hand switch valveSV Slide valveKA Check valveRE, ASC Pneumatic throttle valveQE quick exhaust valveHSV hand slide valve
| Prod Model: |
4M210-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread: |
1/8, 1/4, 3/8, 1/2 |
| Regular Voltage: |
12VDC, 24VDC, 110VAC, 220VAC |
| Flow(CV): |
0.78,0.89,0.67,1.4,1.681,2.79, |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Membrane Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Industrial Usage |
| Material: |
Aluminum |
| Usage: |
Directional |
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items
Pneumatic fittings, plastic, brass, stainless steel push in fittings
Pneumatic quick coupling, air tool kits, air blow gun
Pneumatic muffler, silencer, filter
Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil
Air cylinder, air preparation, pneumatic directional valve
Modular hose, water push in fitting
Ball valve, brass connector
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder
Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
