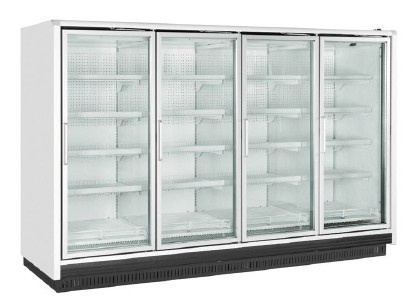

1. The unique anti-fog doors design is beneficial for product appearance for customers;
2. High evaporating temperature at -28C for system energy efficiency and safe presentation of frozen foods storage;
3. Energy saving & high efficiency options available (LED lighting, T8 lighting, ESM fan motor, Electronic expansion valve and Hot defrost);
4. Temperature range: <-18C.
|
2.0M Height Model |
|
|
|
|
|
|
Model |
LXWXH External Dimension/mm |
Temperature Range/C |
Effective Volume/m3 |
Display Area/m3 |
Weight/kg |
|
DB-AGDF2D156 |
1562*945*2040 |
≤-18 |
1.60 |
1.58 |
380 |
|
DB-AGDF3D235 |
2343*945*2040 |
≤-18 |
2.40 |
2.36 |
520 |
|
DB-AGDF4D313 |
3124*945*2040 |
≤-18 |
3.20 |
3.15 |
700 |
|
DB-AGDF5D390 |
3900*945*2040 |
≤-18 |
4.00 |
3.94 |
840 |
|
|
|
|
|
|
|
|
2.2M Height Model |
|
|
|
|
|
|
Model |
LXWXH External Dimension/mm |
Temperature Range/C |
Effective Volume/m3 |
Display Area/m3 |
Weight/kg |
|
DB-AGDF2D156L |
1562*945*2220 |
≤-18 |
1.76 |
1.76 |
400 |
|
DB-AGDF3D235L |
2343*945*2220 |
≤-18 |
2.64 |
2.63 |
550 |
|
DB-AGDF4D313L |
3124*945*2220 |
≤-18 |
3.52 |
3.51 |
750 |
|
DB-AGDF5D390L |
3900*945*2220 |
≤-18 |
4.40 |
4.39 |
890 |
Qingdao Reliance Refrigeration Equipment Co., Ltd, is a group cooperation of manufacture and trading, specialized in refrigeration equipment and cold room line. Our products include supermarket display refrigerator, upright showcase, kitchen stainless steel refrigerator, kitchen refrigerated counter, cold room, refrigeration compressor unit, compressor racks, evaporator, and condenser etc.
We have strong ability of experitse technic, scientific management, stable and reliable project quanlity and on-time after sevice. We observe the philosophy "Quality First, Reliance Prime". We have cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since the set up. We sincerely welcome you to visit our company or contact us for cooperation!
