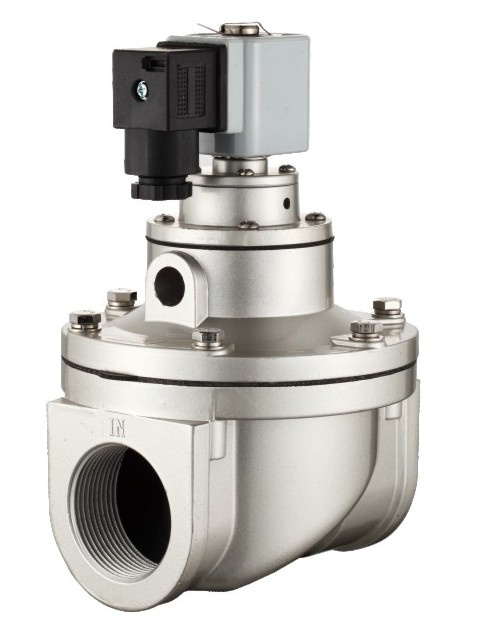

Dust Valve
DMF-T electro-magnetic pulse valves are straight in valve, with the 180 angle between the inlet and outlet, which is suitable for the installation connection between the inlet and gas dome, outlet and the blow tube to provide good air flow and dust clean pulses satisfying the requirements.
SPECIFICATION |
Type |
Diameter |
Number Of Diaphragm |
Size Of Inlet Diaphragm |
Outlet Orifice Connection |
Weight (kg) |
Kv / Cv |
Metric thread/mm |
Inch screw thread/inch |
DMF-T-25 |
25 |
1 |
2 |
G1 |
G1 |
1.4 |
21.38/24.95 |
DMF-T-40S |
40 |
1-1/2 |
2 |
G1-1/2 |
G1-1/2 |
1.8 |
32.42/37.83 |
DMF-T-50S |
50 |
2 |
2 |
G2 |
G2 |
2.8 |
50.77/59.25 |
DMF-T-62S |
62 |
2-1/2 |
2 |
G2-1/2 |
G2-1/2 |
4.1 |
111.67/130.32 |
