PULSE VALVE
DMF-Y SERIES
EMBEDDED SERIES

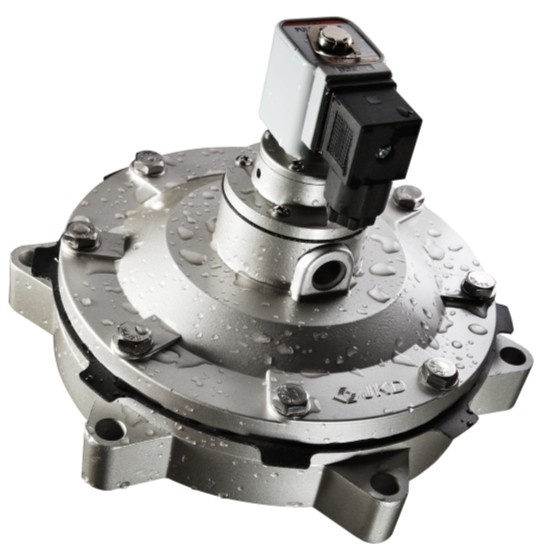

DMF-Y electro-magnetic pulse valves are embedded valves(also called submergedones) which are directly installed on the
manifold box. They have better flow characteristics and operate with reduced pressure loss, therefore, they are suitable for
the conditions where the pressure of the gas source is relatively low.
INSIDE STRUCTURE
DIMENSION
|
SPECIFICATION |
|
Type |
Diameter |
Number Of Diaphragm |
Outlet Orifice Connection |
Weight (kg) |
Kv / Cv |
|
Metric thread/mm |
Inch screw thread/inch |
|
DMF-Y-25 |
25 |
1" |
1 |
G1" |
0.8 |
26.24/30.62 |
|
DMF-Y-40S |
40 |
1-1/2 |
2 |
G1-1/2" |
1.2 |
39.41/45.99 |
|
DMF-Y-50S |
50 |
2" |
2 |
50 |
2.5 |
62.09/72.46 |
|
DMF-Y-62S |
62 |
2-1/2 |
2 |
62 |
3 |
106.58/125.38 |
|
DMF-Y-76S |
76 |
3" |
2 |
76 |
3.7 |
165.84/193.54 |
|
DMF-Y-90S |
90 |
3-1/2" |
2 |
90 |
5 |
165.84/193.54 |
|
DMF-Y-102S |
102 |
4" |
2 |
102 |
5.65 |
268.29/313.09 |
