DRESS NUT SERIES

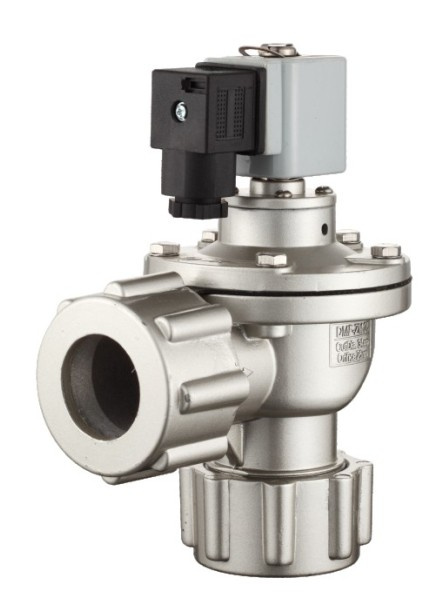

DMF-ZM series pulse valve are the right angle valve same as series "Z" which is suitable for the installation connection between the gas dome and the bag house bow tube. There are fix nut at both ends which make it easy for installation and use the valve.
JKD Rectangular pilot diaphragm protective good, big injection quantity, compact design, elegant appearance Action quick response and high frequency German technology, export series
DIMENSION
|
SPECIFICATION |
|
Type |
Diameter |
Number Of Diaphragm |
Siz Of Inlet Diaphragm |
Outlet Orifice Connection |
Weight (kg) |
Kv / Cv |
|
Metric thread/mm |
Inch screw thread/inch |
|
DMF-ZM-20 |
20 |
3/4" |
1 |
27 |
27 |
0.9 |
17.55/20.48 |
|
DMF-ZM-25 |
25 |
1" |
1 |
34 |
34 |
1.3 |
26.16/30.53 |
|
DMF-ZM-40S |
40 |
1-1/2" |
2 |
48 |
48 |
2 |
45.82/53.48 |
