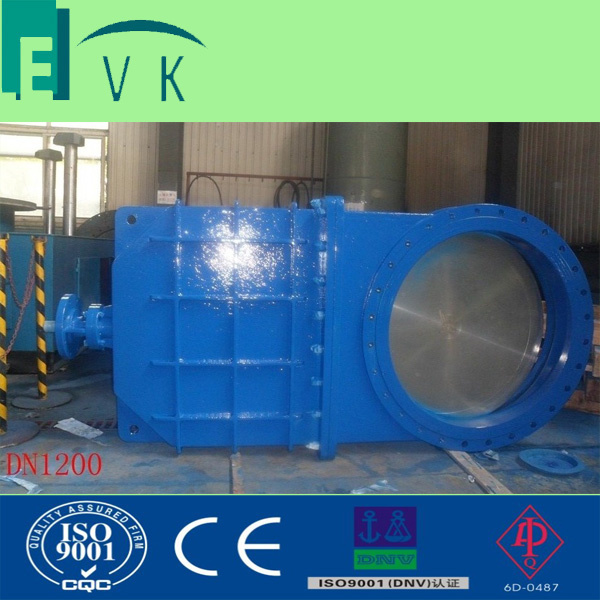

Dn1200 Flange Bidirectional Knife Gate Valve with Low Pressure
Price: |
US $ 10/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union |
Standards Compliance:
MSS SP-81, JB/T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533; JB79; GB/T 9113; HG20592
Inspect & Test: API 598, GB/T 13927; JB/T 9092
Carbon Steel:
Cast Carbon Steel A216 Gr WCB Body and Bonnet.
F316 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Cast Iron:
Cast Iron A126 GR. B Body and Bonnet.
F304 Stem & Gate, Resilient or Metal Seating
Stem packing PTFE / graphite composite.
Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials.
Various trim materials available to suit service conditions.
Operations
Manual, Electric, Pneumatic and Hydrau-Pneumatic Actuator etc.
Size Ranges from 2in to 60in (DN50~DN1500)
Pressure Ratings available in PN6, PN10, PN16, ANSI 125 & ANSI 150.
Part Name |
|
|
|
|
|
|
|
|
|
|
Body |
A216WCB |
A352LCB |
A217WC1 |
A217WC6 |
A217WC9 |
A217C5 |
A351CF8 |
A351CF8M |
A351CF3 |
A351CF3M |
Seat |
PTFE/NBR |
|
|
|
|
|
|
|
|
|
Knife |
A216WCB |
A352LCB |
A217WC1 |
A217WC6 |
A217WC9 |
A217C5 |
A351CF8 |
A351CF8M |
A351CF3 |
A351CF3M |
Packing |
Flexible Graphite+SS, PTFE |
|
|
|
|
|
|
|
|
|
Packing Flange |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F304 |
A182F316 |
A182F304L |
A182F316L |
Stem |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F6a |
A182F304 |
A182F316 |
A182F304L |
A182F316L |
Yoke |
A216WCB |
A352LCB |
A217WC1 |
A217WC6 |
A217WC9 |
A217C5 |
A351CF8 |
A351CF8M |
A351CF3 |
A351CF3M |
Stem Nut |
Copper Alloy/A439D2 |
|
|
|
|
|
|
|
|
|
Nut |
A194 2H |
A194 4 |
A194 2H |
A194 4 |
A194 4 |
A194 4 |
A194 8 |
A194 8 |
A194 8 |
A194 8 |
Handwheel |
Ductile Iron/ Carbon Steel |
|
|
|
|
|
|
|
|
|
Bolt |
A193 B7 |
A320L7 |
A193 B7 |
A193 B16 |
A193 B16 |
A193B16 |
A193B8 |
A193B8 |
A193B8 |
A193B8 |
Nut |
A194 2H |
A194 4 |
A194 2H |
A194 4 |
A194 4 |
A194 4 |
A194 8 |
A194 8 |
A194 |
|
|
Prod Model: |
Knife |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Standard Or Nonstandard: |
Standard |
Power: |
Manual/Gear/Penumatic/Motorized |
Media: |
Sewage |
Model Number: |
API Knife Gate Valve |
Valve Body: |
Carton Steel/Stainless Steel |
Stem: |
Stainless Steel |
Medium: |
Water |
Structure: |
Gate |
Port Size: |
50~2000mm |
Bonnet: |
Carton Steel/Stainless Steel |
Connection Form: |
Flange |
Material: |
Carbon Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Water Industrial Usage |
EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.
Main production includes:
Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)
Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.
Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).
Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.
We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.
Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
