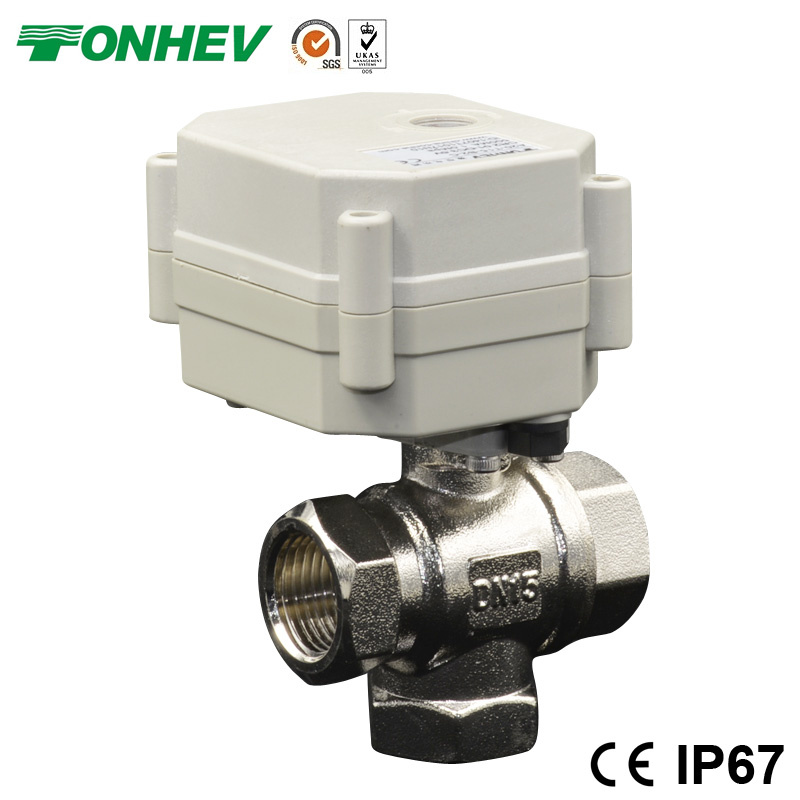

Dn15 1/2'' 3-Way Nickel Plated Brass Ball DC5V/12V/24V Electric Flow Control Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
90/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Specifications:
Model: T15-N3-C-CR201
Size: 1/2''
Internal diameter: 15mm
Rated Voltage: DC5V/DC12V/DC24V
Working current: less than 80MA
Open/close time: less than 5S
Wiring control: CR2-01
Life time: 70000 times
Manual override: NO
Indicator: YES
Max. working pressure: 1.0MPa
Actuator material: Engineering Plastics
Sealing material:EPDM & PTFE
Body: Stainless steel
Max. torque force: 2 Nm
Cable length: 50cm
Actuator rotation: 90 degree
Liquid temperature: 2 Celsius-90 Celsius
Environment temperature: -15 Celsius-50 Celsius
Protection class: IP67
Application :
IC card meters, heat energy meters, air-warm valve.
Heating & Cooling HAVC systme
Water equipments, auto-control water system, industrial mini auto equipment..
Irrigation equipment
Drink water equipment.
Leak detection & water shut off system
| Prod Model: |
T15-N3-C-CR201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Size: |
Dn15 1/2'' |
| Material: |
Stainless Steel |
| Pressure: |
Medium Pressure |
| Temperature Of Media: |
Normal Temperature |
| Protection Class: |
IP67 |
| Torque: |
2n.M |
| Certification: |
CE, SGS, NSF61 |
| Life Time: |
70000 Times |
| Actuator Material: |
Engineering Plastics |
| Sealing Material: |
EPDM & PTFE |
