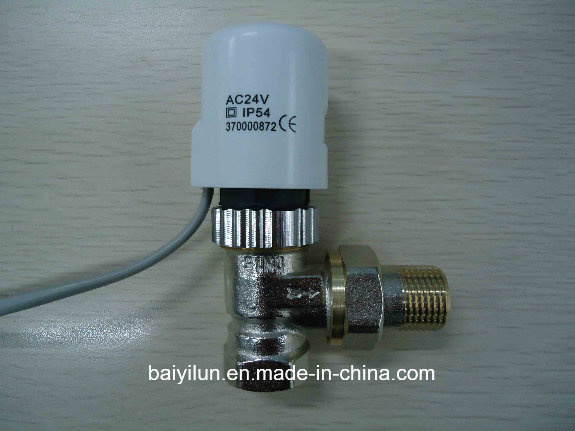

Underfloor Heating System Wax Thermal Actuator
Thermal actuator;electric actuator 24v NC / NO
Avonflow Baiyilun specializes in manufacturing thermostatic radiator valves for more than ten years. Our products have according to EN215-1 productions standards, and the automatic control design is energy saving
and environment protection. Our products' mission is to give your family and place the most comfortable temperature.
Product Information
Technical ParameterVoltage: | 230V (220V) 24V |
| Status: | NC NO |
| Power Consumption: | 2VA |
| Thrust: | 110N |
| Stroke: | 3mm |
| Running time: | Open-3mins,close-5mins |
| Connection size: | M30*1.5mm |
| Ambient temperature: | From -5degree to 60degree |
| Cable Length: | 1000mm |
| Protective housing: | IP54 |
2.Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 bar
Avonflow Baiyilun TRV Co., Ltd. (old name "Wenzhou Baiyilun Hardware Co., Ltd") specializes in the development and manufacture of heating and temperature control products. Baiyilun constant temperature control valves, used in pressure temperature regulator of city heating and hot water system, are equipped with body as automatic constant temperature control valve. This valve doesn't need exterior energy while automatically controlled by indoor temperature, which can not only save energy but also protect environment and give you a suitable indoor temperature.
Manufacture and test of Baiyilun constant temperature control valve of radiator is according to GB/T13927-92; EN215-1 standard and through the test of Beijing Construction Project Quality Testing Centre. Our company also has advanced and complete testing and inspecting instrument.
2 EN215 Standard Testing Bench, 8 automatic plastic injection machines, Over 10 years production experience on TRVs, 30 CNC machines, Over 40 exported Countries, Production Capicity around 3, 000, 000 pieces/year, Welcome you come to visit us and cooperate with us.
