Two years warranty
Port size: 15-50mm
Media: Water
Material: Forged steel

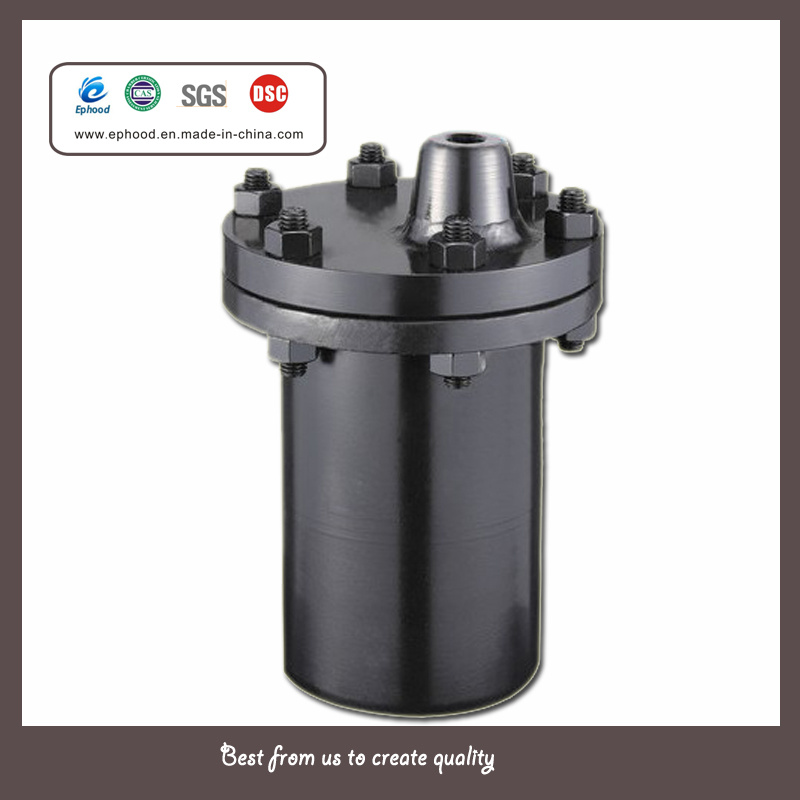

1. DSC forged steel inverted bucket steam traps all parts are replaceable for operating pressure 46 kg/cm2 X 420degree
2. Excellent resistance to wear and corrosion resistance.
3. Excellent ability to handle dirt and purge system
4. Small dribble at no load, intermittent at light and normal load, continuous at full load.
5. Vents air and CO2 at steam temperature.
6. Excellent operation against back pressure.
7. Good resistance to damage from freezing
8. Immediate responsiveness to slugs of condensate.
9. Large comparative physical size
|
Model |
Size(mm) |
WT,SE(kg) |
WT,FLG(kg) |
|
642,642F |
15,20 |
14 |
15 |
|
643,643F |
20,25 |
22 |
23 |
|
645,645F |
25,32,40 |
42 |
44 |
|
646,646F |
40,50 |
73 |
75 |
We are valve manufacturer specialized in the industrial valves utilized in the server application environment against high temperature, high pressure, high corrosive and low temperature or cryogenic application ranging from petrochemical, offshore, chemical, gas, power plant, shipyard to long distance pipeline and pharmacy or other industries. Valve types vary from ball valve, globe valve, check valve, gate valve, butterfly valve to plug valve, and also from tank bottom valve, sampling valve, double block & bleed valve, strainer to sight glass.
Valve material are available from Titanium, Nickel alloy, Zirconium, Nickel-Aluminum-Bronze, (Super) Duplex to alloy 20#, 904L, 310S, 321, 347 or other anti-corrosive alloys. With emphasis on quality consistency and innovative design, we gradually turn to be reliable business partner for plenty engineering companies and end users all over the world.
