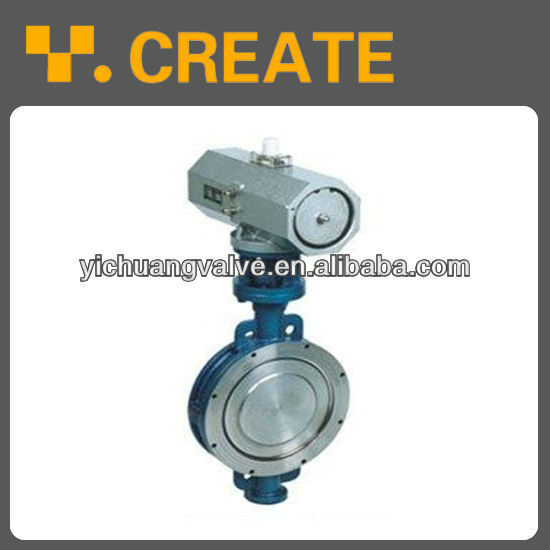

Specifications of flange dn150 butterfly valve:
Technical parameters:
Design
GB/T12238, JB/T8527, API609
Flange
GB/T9113, GB/T9115, HG/T20592, JB/T79, ANSI B16.5, DIN2531-2534, JIS B2212-2215,
Face to face
GB/T12221, ANSI B16.5, DIN3020, JIS B2002
Test & inspection
GB/T13927, API598
Materials for main parts:
Mode
D4/7/63H-6~40C
D4/7/63H-6~40P8
D4/7/63H-6~40R8
D4/7/63H-6~40I
D4/7/63H-150~300(Lb)C
D4/7/63H-150~300(Lb)P8
D4/7/63H-150~300(Lb)R8
D4/7/63H-150~300(Lb)I
Parts
Body
WCB/ZG25
CF8/ZG1Cr18Ni9Ti
CF8/ZG1Cr18Ni9Ti
WCB/ZG15CrMo
Disc
WCB/ZG25
CF8/ZG1Cr18Ni9Ti
CF8/ZG1Cr18Ni9Ti
WCB/ZG15CrMo
Seat
Stainless steel and various composite materials
Stem
40Cr coated Cr
1Cr18Ni9Ti/304
316/0Cr18Ni12Mo2Ti
F22/25Cr2Mo2
Clamping ring
ZCuA19Mn2
HMn58-2-2
HMn58-2-2
316/0Cr18Ni12Mo2i
Medium
Water, steam
Gas, acid, base, etc weak corrosive medium
Water, steam
Temperature
-29° C~350° C
-40° C~200° C
≤ 450° C
Beijing Yichuang Valve Manufacturing Co., Ltd covers an area of 30, 000 square meters, registered capital of 51.18 million yuan, with about 300 staffs and more than 50 professional and technical personnel.
We are a professional manufacturer of valves for more than 14 years experiences. The products include gate valve, globe valve, check valve, throttle valve, ball valve, butterfly valve, etc. Standards as GB, ANSI, API, BS, JIS, DIN, etc. Products are widely applied in electric power, petroleum, chemical, fertilizer, metallurgy, papermaking, pharmaceutical and other industries. The products have won certificates of API, ISO etc. Hope we can have a chance to cooperate with your honored company.
