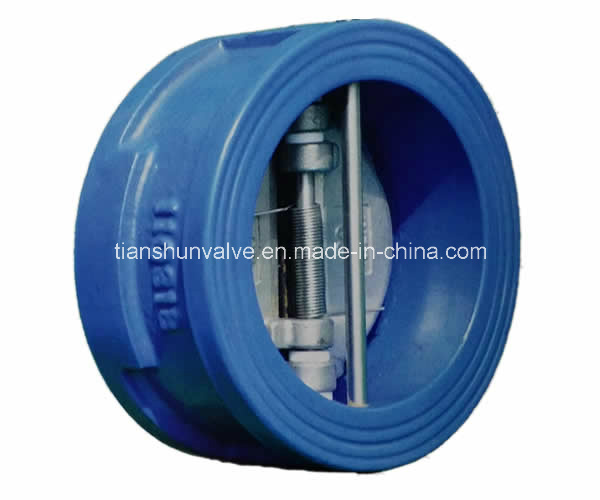

Dn150-Dn200 Dual Plate Wafer Type Hydraulic Check Valve CF8m
Product Description
Double plate check valve wafer type
1. Products Name: DUAL PLATE CHECK VALVE WAFER TYPE
2. Working pressure: PN10/16/25
3. Tests: API598; DIN3230
4. Flange standard: DIN2501 PN10/PN16; BS4504 PN10/PN16;
BS10 TABLE"D"/"E" /JIS2220 10K/16K; ANSI125/150
5. Face to face: ANSI125/150; DIN3203 K3-1999
6. Applications: Water, industrial systems
7. Working temp: EPDM: -10° C~+120° C/NBR: -10° C~+80° C/VITON: -23° C~+150° C/
8. Medium: Fresh water, sea water, waste water, food stuff, steam, all kinds of oil, all kinds of acid and alkaline liquid etc
|
Body |
Cast iron GG25 |
|
Ductile Iron GGG40 |
|
Stainless Steel CF8M/SS316 |
|
Disc |
Stainless Steel SS316/SS304 |
|
AL Bronze |
|
Carbon Steel |
|
Seat Gasket |
Rubber NBR/EPDM |
|
Spring |
Stainless Steel |
|
Axle |
Stainless Steel |
|
Washer |
TEFLON |
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
