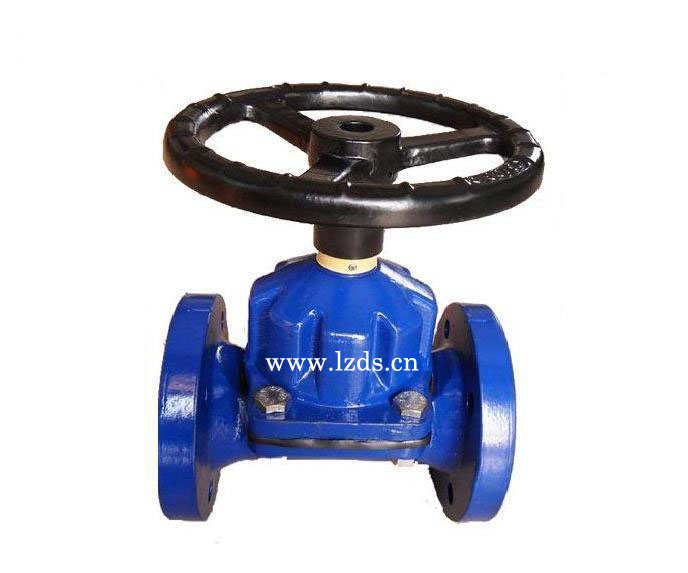

DIAPHRAGM VALVE
DESCRIPTION:
1. Working pressure: DN50-DN125 1.0Mpa
DN150-DN200 0.6Mpa
DN250-DN300 0.4Mpa
2. Working temperature: NBR: -20° C ~ +60° C
3. Face to face: EN588-1
4. Flange standards: EN1092-2, BS4504 etc.
5. Testing: DIN3230, API598
6. Medium: Cement, Clay, Cinder, Granular fertilizer and so on solid fluid, Fresh Water, Sea water, inorganic acid and alkaline liquid etc.
Straight-through type Diaphragm Valve
Features:
. Design & Manufacture: GB12239-89
. Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
. Flanged Dimension: GB 4216, GB 9113, GB12221
. Inspect & Test: GB/T 13927
. Operation: Handwheel
. Size Ranges: 1'' to 12''NB
. Pressure Rating: PN6, PN10, PN16,
Materials available in
. Body/Bonnet: Cast Iron, Ductile Iron,
. Lining: Rubber-NR
. Diaphragm: Rubber
. Disc: Cast Iron, Ductile Iron, Stainless Steel
. Valve spindle: Carbon Steel & Stainless Steel
. Handwheel: Iron & Steel
. Screw nut: Copper alloy
Materials List
|
NO. |
PART |
MATERIAL |
|
1 |
BODY |
Cast iron GG25/Ductile iron GGG40 |
|
2 |
BODY LINED |
NATURAL RUBBER |
|
3 |
DIAPHRAGM |
NATURAL RUBBER |
|
4 |
VALVE CLACK |
Ductile iron GGG40 |
|
5 |
BONNET |
Ductile iron GGG40 |
|
6 |
STEM |
STAINLESS STEEL |
|
7 |
BUSH |
PLASTIC |
|
8 |
HANDWHEEL |
Ductile iron GGG40 |
|
9 |
PIN |
CARBON STEEL |
|
10 |
BOLT |
STAINLESS STEEL |
