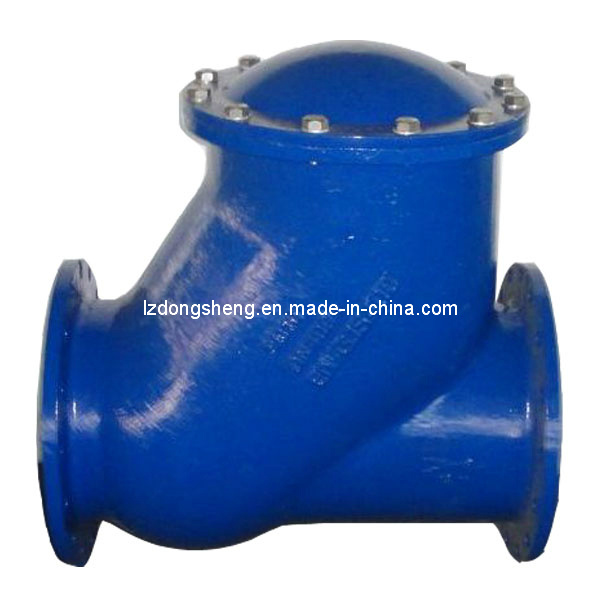

Ball Check ValveTechnical Specification:Threaded ends DN25 to DN80
Flanged ends DN40 to DN400
Threaded type BSP or BSPT
Flanged type EN 1092-2 PN10 /16 and Table D; Table E
Maximum working pressure 16 bars
Operating temperatures 10° C ~ 80° C
Minimum backpressure for tightness 0.3 bar to 0.5 bar
Face to Face dimensions for flanged type according to EN-558-1 serie 48 (DIN3202 F6)
Applications:Pumping stations for clean, sewage water and loaded or viscous fluids.
Technical performance:Full bore ensured
Self cleaning ball
Low pressure drop
Silent
Removeable bonnet for cleaning or changing the ball with out disassembly out of the pipeline
Horizontal and vertical installation in the pipeline

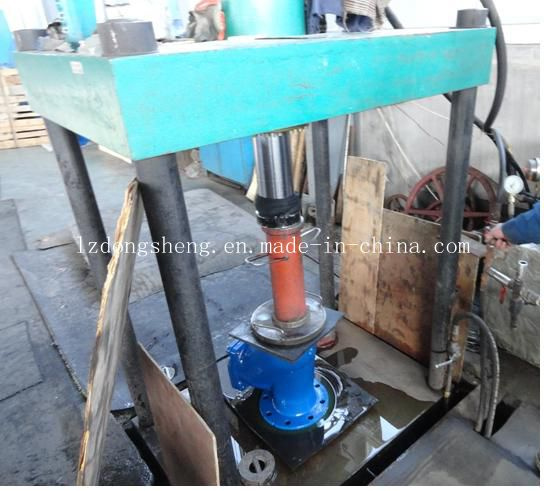

Test:Seat: 1.1x normal pressure
Body: 1.5x normal pressure
Description:
DN25 to DN80 BSP female threaded
DN40 to DN400 flanged PN10; on request PN16
Robust epoxy coating
Body: Cast iron,Ball: NBR

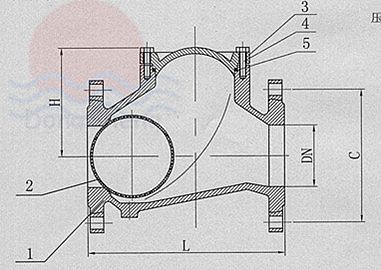

Materials List
|
NO. |
Part |
Material |
|
1 |
Body |
Cast iron GG25 or Ductile ironGGG40 |
|
2 |
Ball |
Aluminium+NBR or EPDM |
|
3 |
Cover |
Ductile iron GGG40 |
|
4 |
Bolt |
SS316 |
|
5 |
Nut |
SS304 |
|
6 |
O-Ring |
NBR/EPDM |
|
7 |
O-Ring |
NBR/EPDM |
