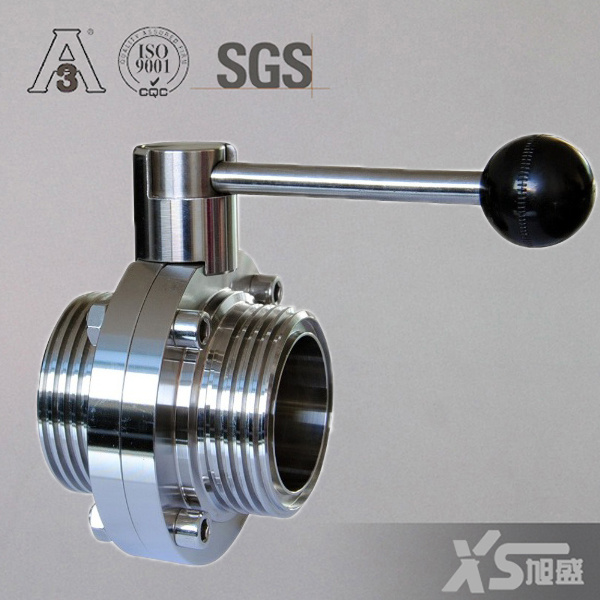

Dn50 Sanitary Manual Male Butterfly Valves

Dn50 Sanitary Manual Male Butterfly Valves
Price: US $ 9-10/Set
Trade Terms: FOB,CFR,CIF
Min Order: 5/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Product Name:DN50 sanitary manual male butterfly valves
StandardDIN,3A,SMS,RJT
Flow Medium Parts304,304L,316L(1.4301,1.4307,1.4404)
Port SizeDn10-150 or 1/2"-150
Way of ConnectionWeld,Male,Clamp,Flange
Gasket for butterfly valveSilicone, EPDM, Viton, NBR
Application It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc
Working principleRemote-controlled operation by the driving gear or manual operation by handle.

 Three drive forms

 Normally closed, normally opened and opened and closed by two air flues seperately.

 Handle
Metal handle, reinforced nylon handle
Adjustable handle, built to order according to users'  request.
Advantage1.Sanitary condition passed FDA Certification
2.with strong resistance to acid, alkali and high temperature
3.Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages
4.Appearance desigh: Keep pace with international latest designs
5.Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use

Our Service

On Samples
Buyer bear the air fee, but this fee will be reduced from order directly
On After SalesFree replacement if there is any quality problem
On DeliveryNever delay delivery time
On MaterialsEnsure material pure
Ensure material pureWelcome

High quality for DN50 sanitary manual male butterfly valves
We maily produce a series of valves,pipe fittings and pumps as follws.
1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary Tee
Sanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3. Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4. Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Welcome to contact us for DN50 sanitary manual male butterfly valves

Contact:Ms.Sysyy Liu
Mobile:0086-13587646794

icq:0086-13587646794

Prod Model: XS-BV00020
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Standard: DIN, 3A, SMS, Rjt
Flow Medium Parts: 304, 304L, 316L (1.4301, 1.4307, 1.4404)
Port Size: Dn10-150 or 1/2"-150
Way Of Connection: Weld, Male, Clamp, Flange
Gasket: Silicone, EPDM, Viton, NBR
Kinds Of Handle: Pull Handle, Gripper Hanle/Fiber Handle.
Pressure Range: 0bar~0bar
Temperature Range: -20 Degree Celsius to 120 Degree Celsius
Processing Machine: Forge Processing, Advance CNC Machine
Working Principle: Remote-Controlled Operation by The Driving Gear or
Connection Form: Welding
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Milk, Beer, Juice, Phramacy
Founded in 2005, Wenzhou Xusheng Machinery Industry and Trading Co., Ltd is a modern enterprise which integrates scientificResearch and production. We are one of the new manufactures which are capable of producing high precision stainless steelSanitary equipment and pipeline connection parts.

Xusheng can provide a variety of products, such as sanitary manual/pneumatic butterfly valve, sanitary check valve, sanitaryDiaphragm valve, sanitary ball valve, thin wall visual mirror sanitarypipe fitting, sanitary manhole cover, sanitary pump and otherRelated products. All Xusheng products can be made according to different materials and industrials standard, such as SMS, DIN. 3A, ISO, RJT, IDF, BS, DS and BPE. Our products are widely applied to dairy, food, beer, beverage, pharmacy and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

Xusheng applies the most advanced CNC machine from Japan for processing, cutting machines, automatic equipment, completeInspection equipment, Excellent quality control system, an after-sale service center and strong production capacity. It makes eachXusheng products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.

We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent liquid fittings to meet customers'Requirement by full Passion and first-class service. Moreover, we can also design according to your drawing and samples.

We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits, we welcome worldwide. Friends to give us more Supports and suggestions! !
