Application:
This type valve series can be automatically or manually, because of its can be very good deal with viscous or medium with particulate, which is widely used in food, beverage, pharmaceutical and chemical industrial piping system, to regulate and control the medium flow in the system.
Working principle:

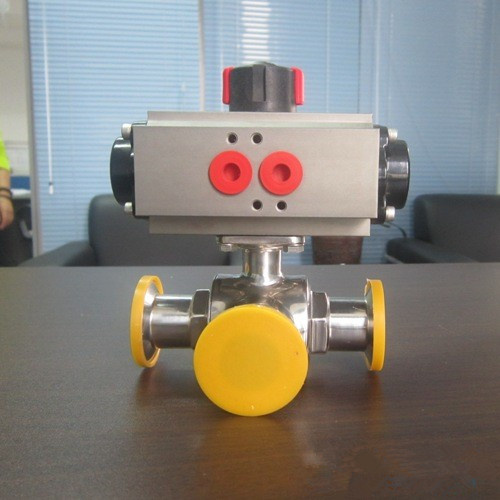

This kind of valve can be operated through actuator(electric pneumatic)
Actuator or manually with the hand is to revolve the axial movement unto 90degree: So than it the valve can open or close. The actuator have three type.
Multi-position handle can use to 15 degree adjustment of valve there is 12seat to lock open or close, In that way, the valve can control the flow.
Pulling handle can use to the 4 multi-function to lock open or close. In that way, the valve can control the flow.
Material: Steel parts: 304 stainless steel, stainless steel 316L
Seal: VMQ, FPM, EPDM, PTFE
Standard design: DIN, 3A, SMS, ISO/IDF, RS/RJT, ASME/BPE, ETC.
DN-NO.dsl1256 |
Size |
A |
B |
H |
H1 |
L |
|
DN15 |
95 |
50.5 |
166.5 |
89 |
140 |
|
DN20 |
95 |
50.5 |
166.5 |
89 |
140 |
|
DN25 |
120 |
50.5 |
166.5 |
89 |
140 |
|
DN32 |
130 |
50.5 |
166.5 |
89 |
140 |
|
DN40 |
140 |
50.5 |
186.0 |
105 |
159 |
|
DN50 |
164 |
64.0 |
192.0 |
105 |
159 |
|
DN65 |
190 |
77.5 |
197.0 |
105 |
159 |
