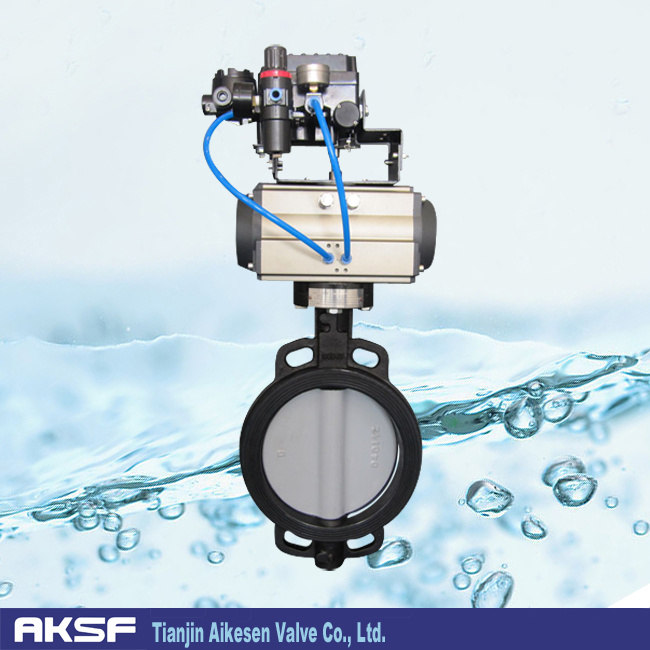

Instruction of pneumatic butterfly valves
The structural features of pneumatic butterfly valve:
Pneumatic actuator: It use new-style AT pneumatic actuator, with double acting and spring return types driven by gear and rack with high performance, big diameter valves are driven by AW pneumatic actuator on pull-extraction manner, with reasonable structure and large output torque as well as double acting and spring return types.
Center-line Resilient seal: Use rubber and fluorine plastic of full liner rubber and fluorine plastic as sealing material. Elastic seat is furnished with high precision butterfly plate to insure zero leakage. Bushings are mounted on the bottom, middle and upper parts of valve stem for supporting and rotary slippage, thus to retain minimum friction. The products are light weighted small sized and quick to open and close.
Triple-eccentricity structure seal: Using metal and fluorine plastic for seat sealing. Metal sealed butterfly valves incorporate seat with elastic sealing ring and multilayer composite butterfly plate. Triple-eccentric sealing structure functions small friction upon open and close, dependable seal, anti-friction, high temperature resistance, self-centering effect, little leakage and ling life-span. Provided with the advantages of reasonable structure, lightweight, small sie, dapper installation dimension, easy operation and quick on and off, the fluid control vales have been rapidly developed and most widely used.
Pressure Grade:
0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa, 10.0MPa
150Class, 300Class, 400Class, 600Class
Body material and Applicable Medium: C (Water, Steam, Oil and liquefied gas etc. )
P (Corrosive mediums such as nitric acid etc. )
R (Corrosive mediums such as acetic acid etc. )
Selection Accessories:
According to the different control and the request can choose the following accessories:
Cut-off Accessories: Single electrically controlled solenoid valve, double electrically controlled magnetic valve, signal saver of limit switch.
Adjust Accessories: Electric-pneumatic positioner, pneumatic positioner, electric-pneumatic converter.
Air-supply treatment accessories: Air-filtering reducing valve, FRL. Combination Unit
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
