Home Valve Products Double Eccentric Butterfly Valve-Hard Sealing Double Flanged Butterfly Valve-Pneumatic Butterfly Valve

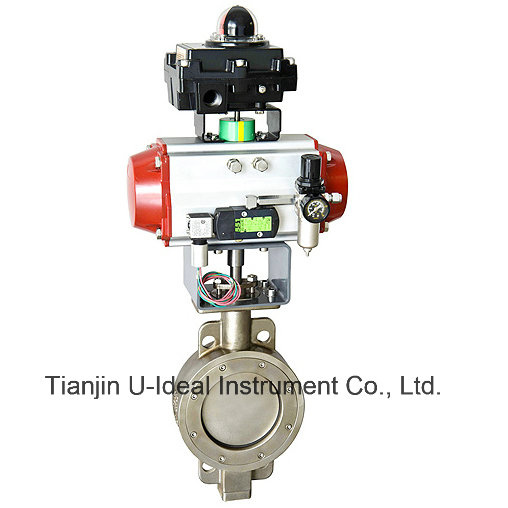

Double Eccentric Butterfly Valve-Hard Sealing Double Flanged Butterfly Valve-Pneumatic Butterfly Valve
| Price: |
US $ 500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.
A butterfly valve is from a family of valves called quarter-turn valves.
ZSHWB Series of Double Eccentric Butterfly Valve(High performance butterfly valve), both valve disc and sealing ring are designed in special eccentric structure, with characteristics of impact structure, good shut-off performance, repair and replace conveniently and long operation life, so it has both regulating and shut-off functions, which could be widely used to cut off and regulate the processing fluids, such as metallurgy, oil, chemical engineering, electric power, natural gas.
| Nominal Diameter | DN80~1200 |
| Nominal Pressure | PN0.6~10.0MPa ANSI 150~600lb |
| Density Temperature | -60~450ºC |
| Connection Type | Wafer |
| Bonnet Type | STD. |
| Body Material | WCB\CF8\CF8M\CF3M |
| Disc Material | CF8\CF8M\CF3M\CF8+ Stellite\CF3M+ Stellite |
| Sealing Ring Material | PTFE\C-PTFE\304\316\316L |
| Flow Characteristic | Approximate equal percentage |
| Leakage | Soft Sealing | ANSI Class VI |
| Hard Sealing | ANSI Class IV |
| Prod Model: |
ZSHWB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
Dn80~1200 |
| Connection Form: |
Flange |
| Structure: |
Double-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
High Pressure (',10.0mpa< Pn <80.0mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
