Double Eccentric Butterfly Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

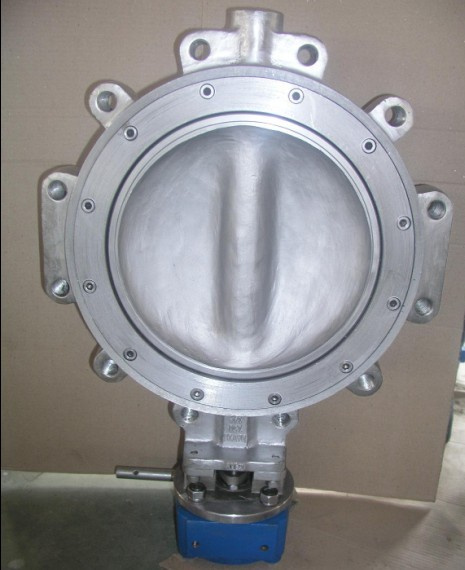

Double Eccentric Lug Type Butterfly Valve
Wafer type, lug type and double flanged type
1. Size: 2"to48"
2. Working Pressure: 2"to6" 40bar, 8"to26" 25bar
3. Materials:
Body: Cast iron, Carbon Steel, 304S. S, 316S. S and aluminum bronze.
Disc: Ni-plated ductile iron, Nylon coated ductile iron, 304S. S, 316S. S, aluminum bronze and monel.
Shaft: 416S. Sand316S. S, 17-4pH.
Seat: EPDM, high temperature EPDM, food grade EPDM, NBR, abrasive resistant NBR, Viton, high temperature Viton, Hypalon, Silicon rubber PTFE over EPDM, PTFE over NBR, Neoprene.
Bushing: Glass backed PTFE
More Product Features
| Prod Model: |
D372H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2''-48'' |
| Connection Form: |
Lug Support |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Seal Form: |
Force Sealed |
| Material Of Seal Surface: |
Soft Sealed |
| Structure: |
Three-Eccentric Sealing |
Established in 1986, ZhangSheng Valve Co., Ltd (original name: Zhejiang Hengtong Valve Co., Ltd )has become a professional manufacturer and exporter of industrial valves in China with the best in quality and service. The company has two manufacturing plants, including one in Wenzhou, the other one in Lishui City, Zhejiang Province, covering an area of 21, 186 square meters.
with more than 20 years experience, ZHANGSHENG valves handle diverse applications in Metallurgy, Electricity, petroleum, Chemicals, Papermaking, iron and steel, coal gas, mine, Plumbing, sewage disposal, Pharmaceuticals industries.
Our main products
Range: Butterfly, ball, gate, knife gate valve, globe, check, plug, bellow sealed valve, cast iron valve etc.
Operations: Manual, gearbox, pneumatic, electronic, hydraulic, hydraulic-pneumatic
Size: NPS 1"~160"
Pressure: 0.25Mpa-32Mpa
Standards: ANSI, DIN, BS, JIS, GB etc.
Connection End: Flanged, wafer type, BW, SW, NPT, etc.
Materials: Cast/Forged Steel, Cast Ion, Stainless Steel, Alloy steel, Duplex Steel etc
All products are designed and manufactured fully comply with API, ANSI, JIS, DIN, BS, GB and other international standards, as well as customers' special requirements.
Quality Assurance
ZHAGNSHENG's Quality Assurance is dedicated to pursuit of zero defect valve, and this has resulted in the company having more quality qualifications than most of our competitors. ZHANGSHEGN is certified by ISO 9001, API6D, CE, AZ.
Our products are marketed in over thirty provinces and municipalities at home and also exported to Europe, America, Middle East, South East Asia, and so on, We have won great reputation from our customers. We aim at "Let ZHANGSHENG go global " and sincerely hope to build up friendly, cooperative and beneficiary relations with more clients.
