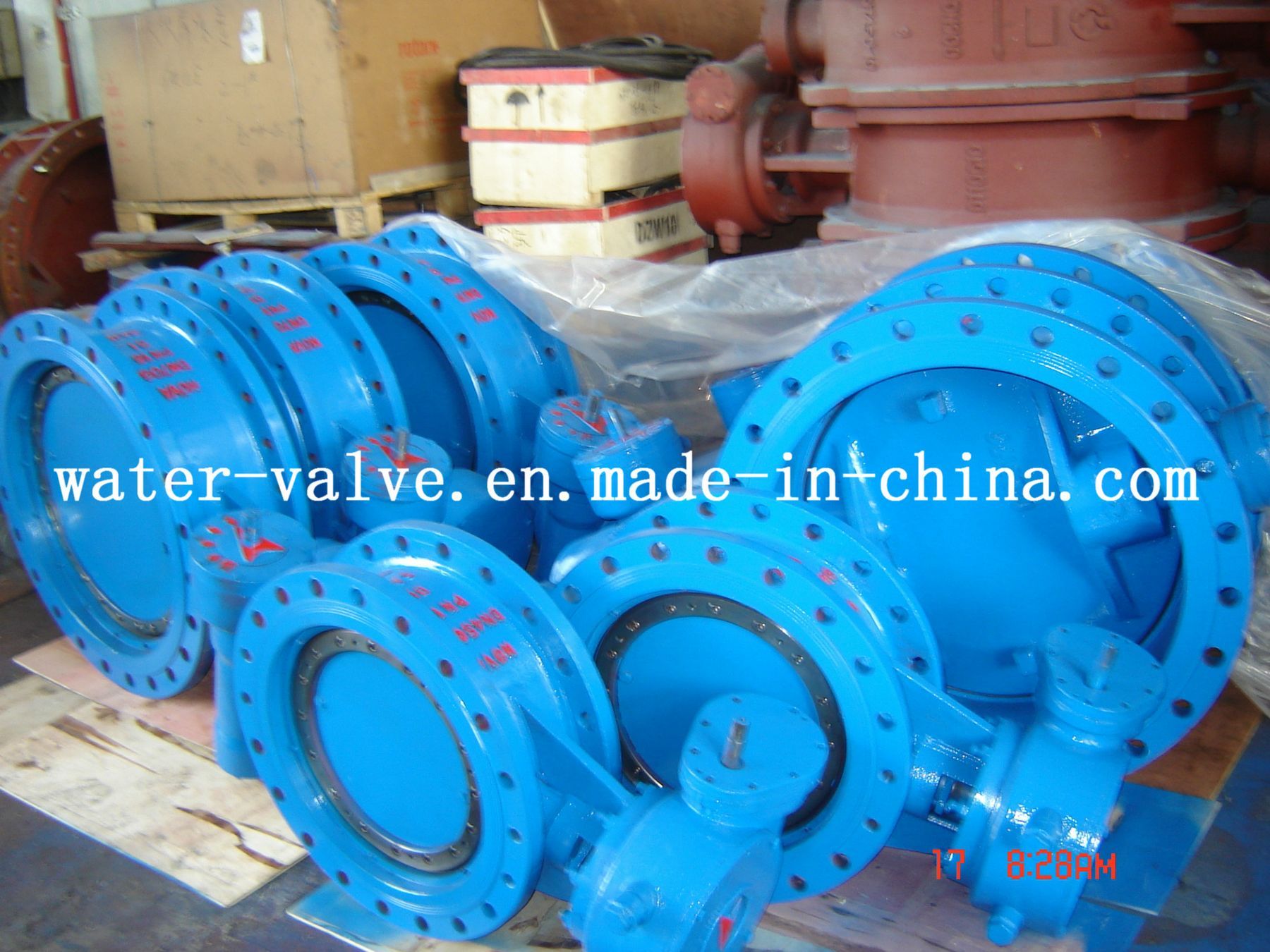

Double Eccentric Double Flang Metel Sealing Butterfly Valve

Double Eccentric Double Flang Metel Sealing Butterfly Valve
Price: US $ 5800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Description
Double Flange Type Butterfly Valve

Product feature

This series of butterfly valves are suitable to be used for industrial pipeline as two-way open-closing and regulating devices.The scope of regulation is from 4o°to 90°fully open.If the valve is one-way used,the recommended pressure direction of closing is shown on fig.

1. The disk is truss framed with two-plate and flow-resistent is lower.
2. It has reliable sealing structure for two-way stopping without any leakage.
3. The axle sleeves are self-lubricanted bearing. Oiling is not need and friction drag is small during operation.
4. Rubber sealing can be replaced on pipeline without removing the valve (DN>700).
5. Several kinds of actuators with reliable performance and agile operation are supplied for the liser's selection. Wear-resisting and corrosion-resisting.

Butterfly Valve Specification:
Body/Disc:             Ductile iron BS EN 1563 EN-GJS-400-15
Body Seat:             Stainless Steel BS EN 10088 Grade 1.4057 (431)
Disc Seat:              EPDM
Shaft:                      Stainless Steel BS EN 10088 Grade 1.4057 (431)
Flange standard: GB4216.3-84,BS4504,ANSI B16.1
Face to face:         GB12221-89 series 13,BS5155,ANSI B16.10
Pressure test:       GB/T 13927-92 Grade A(or on request)
Leakage:                No visible detectable leakage

Suitable medium:
water,sea water
Main material:grey cast iron,ductile cast
iron,alloy cast iron,carbon steel
Suitable temprature:≤80ºC
Nominal pressure:PN2.5-25bar
Nominal diameter:DN250-2800mm
Flange dimension:BS4504 ISO2531,ISO7005
and other standards conforming to the requirements
Face to Face length:BS5155,ISO5752, DIN3352,AWWAC504 and other standards conforming to the requirements


Why Choose Us:

1:Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve

Works was reformed. It is the largest low pressure big diameter valve, penstock

manufacturing base. It has a history of more than 70 years, it is named as advanced new

and high-tech enterprise

2.There's no any leakage and breakage for the valve and use for long life .

Every butterfly valve will test for 2 times test pressure before leave factory. We will replace

the valve or repair on site if there is quality problem within 18 months guarantee period.

3.We obtained ISO9001 quality system certificate

We inspect the parts of valve carefully, 48 produce steps,try to supply you ideal valve.

4.We can supply different kinds of materials according to customers'

requests,such as DI,cast steel,SS304,SS316 body and disc.

EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.

4.We have more than  types body moulds, which include

ISO,DIN,ANSI,BS,AWWAC504 standard.

5.Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.

About us

Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve Works was reformed. It is the largest low pressure big diameter valve, penstock manufacturing base. It has a history of more than 70 years, it is named as advanced new and high-tech enterprise.

The registered capital is 65 million. We have 180 staff which include 2 senior professional title technicians; 15 middle professional title technicians; 40% of the staff graduated from the college. Our company occupies an area of 18558 m2 and a building area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machine, planning machine, universal tool grinding machine, plate bending area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machinerolls. There are more than 80 machining equipments and cranes of 32/5 T, 20T and 5T. We can produce gray cast iron, ductile iron, low alloy iron valves, steel penstock, cleaning machine, different kind of wind gates, strainers, and pipe fittings and valve actuators. The annual capacity (production value) is RMB 50 million.

The main products: Butterfly valve, gate valve, check valves, air release valve, rotating strainer, comb type cleaning machine, grating, steel penstock, cool and hot isolating gate, guarding gate, regulating shrinkage hole, inserting gate; The suitable medium: Clean water, sewage water, sea water, air, high temperature stove air, gas, steam and different acid and alkali liquid; Suitable temperature: -40º C to 600º C; Suitable pressure: 0.01MPa~2.5MPa; Nominal diameter: DN50-DN3000, actuating methods: Manual, motor, pneumatic, hydraulic, motor& hydraulic. According to the customer' S requirements we can design and manufacture the products conforming to GB, JB, ISO, DIN, BS, API, ANSI. The products are widely used in water power plant, thermal power plant, water plant(city water supplying and distributing), sewage treatment plant, gas, airline, metallic, petroleum and chemical, mine, water power.

Our products have been applied in many projects such as: Beijingyanshang Petroleum &Chemical, Yuanbaoshan Power Plant, Tangshansanyou Thermal Power plant Co., Ltd., Fuxin Power Plant, Anhuipingwei Power Plant, Guodian Puyang Thermal Power Plant Co., Ltd., Jilin Songyuan Oil Refining Plant, Jinxi Petroleum & Chemical Co., Ltd., Jinzhou Power Plant, Guangdong Liede Water Plant. Our company has the right of importing&exporting, some of the products have been exported to USA, Canada, England, Turkey, Spain, Pakistan, Iran, Iraq, Singapore, Thailand, Malaysia, Cambodia, Syria. South Africa, Nigeria, Egypt, Tanzania and other countries.

We have gained the belief and good evaluation from the foreign and domestic customers for our Good product quality and perfect after sale service.

Sincerely welcome the domestic and foreign clients to our company for visiting and negotiation. We will provide you with best products and perfect service.

Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.



Butterfly valve:Features:Main material:grey cast iron,ductile cast
iron,alloy cast iron,carbon steel.Nominal diameter:DN50-4000mm.flange connectiion.
Prod Model: D43R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Diameter Is From Dn100 To Dn4000mm: We Are Sure There's No Leakage
Use For Long Life: The Material Is Ductile Iron
Connection Form: Flange
Structure: Double-Eccentric Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Metal Hard Sealed
Application: Water Industrial Usage
Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve Works was reformed. It is the largest low pressure big diameter valve, penstock manufacturing base. It has a history of more than 70 years, it is named as advanced new and high-tech enterprise.

The registered capital is 65 million. We have 180 staff which include 2 senior professional title technicians; 15 middle professional title technicians; 40% of the staff graduated from the college. Our company occupies an area of 18558 m2 and a building area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machine, planning machine, universal tool grinding machine, plate bending area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machinerolls. There are more than 80 machining equipments and cranes of 32/5 T, 20T and 5T. We can produce gray cast iron, ductile iron, low alloy iron valves, steel penstock, cleaning machine, different kind of wind gates, strainers, and pipe fittings and valve actuators. The annual capacity (production value) is RMB 50 million.

The main products: Butterfly valve, gate valve, check valves, air release valve, rotating strainer, comb type cleaning machine, grating, steel penstock, cool and hot isolating gate, guarding gate, regulating shrinkage hole, inserting gate; The suitable medium: Clean water, sewage water, sea water, air, high temperature stove air, gas, steam and different acid and alkali liquid; Suitable temperature: -40º C to 600º C; Suitable pressure: 0.01MPa~2.5MPa; Nominal diameter: DN50-DN3000, actuating methods: Manual, motor, pneumatic, hydraulic, motor& hydraulic. According to the customer' S requirements we can design and manufacture the products conforming to GB, JB, ISO, DIN, BS, API, ANSI. The products are widely used in water power plant, thermal power plant, water plant(city water supplying and distributing), sewage treatment plant, gas, airline, metallic, petroleum and chemical, mine, water power.

Our products have been applied in many projects such as: Beijingyanshang Petroleum &Chemical, Yuanbaoshan Power Plant, Tangshansanyou Thermal Power plant Co., Ltd., Fuxin Power Plant, Anhuipingwei Power Plant, Guodian Puyang Thermal Power Plant Co., Ltd., Jilin Songyuan Oil Refining Plant, Jinxi Petroleum & Chemical Co., Ltd., Jinzhou Power Plant, Guangdong Liede Water Plant. Our company has the right of importing&exporting, some of the products have been exported to USA, Canada, England, Turkey, Spain, Pakistan, Iran, Iraq, Singapore, Thailand, Malaysia, Cambodia, Syria. South Africa, Nigeria, Egypt, Tanzania and other countries.

We have gained the belief and good evaluation from the foreign and domestic customers for our Good product quality and perfect after sale service.

Sincerely welcome the domestic and foreign clients to our company for visiting and negotiation. We will provide you with best products and perfect service.

Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.
