Double Flange Butterfly Valve (U-Type)

Name: Double Flange Butterfly Valve (U-Type)
Brand: Valve Industry
SKU: 692244285
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 18.74/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

AFCON Ningjin Yahua Industries Co., Ltd.

Showroom Product Company Profile

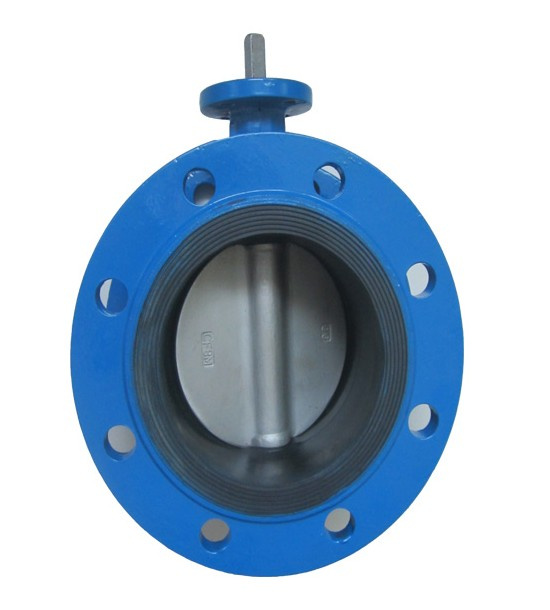

U-type concentric butterfly valve with taper pin

1. Size: DN50-1200 or 2'-48'.

2. Body: Cast iron. Ductile cast iron

3. Disc: Stainless steel, AL-bronze and ductile iron

4. Shaft: Stainless steel

5. Seat: EPDM, NBR, viton and PTFE

6. Taper pin is between the shaft and disc.

7. Strength more highly, seal more reliably for seat.

8. Certification: ISO, SGS and CE.

Brief introductions of U-type concentric butterfly valve with taper pin

1. Face to face according to ISO 5752 series20

2. Flaneg according to DIN2501 PN10/PN16; GOST 12815

3. Butterfly valve is to splice the rubber liner on the body, the strength more highly, the seal more reliably for the seat.

4. Available with handles, manual gear operators, and electric or pneumatic.

More information about wafer type spline butterfly valve.

Our butterfly valves conform to the international standard like GB, ANSI/API, DIN, BS as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. Butterfly valves are widely sold in America, Germany, UK, Italy, Spain, Holland, Sweden, United Arab Emirates, and Singapore etc.

Dimensions List(mm)
Size		A	B	C	Φ D	Φ E			Φ F			Φ G			L	Φ H	Φ J	S-Φ K
mm	inch	A	B	C	Φ D	ANSI 125/150	PN10	PN16	ANSI 125/150	PN10	PN16	ANSI 125/150	PN10	PN16	L	Φ H	Φ J	S-Φ K
50	2"	83	120	32	12.6	120.7	125	125	4-19	4-18	4-18	152	165	165	108	90	70	4-9
65	2.5"	95	140	32	12.6	139.7	145	145	4-19	4-18	4-18	178	185	185	115	90	70	4-9
80	3"	102	145	32	12.6	152.4	160	160	4-19	4-18	8-18	191	200	200	117	90	70	4-9
100	4"	124	160	32	15.77	190.5	180	180	8-19	8-18	8-18	229	220	220	130	90	70	4-9
125	5"	137	170	32	18.92	215.9	210	210	8-22	8-18	8-18	254	250	250	143	90	70	4-9
150	6"	149	190	32	18.92	241.3	240	240	8-22	8-22	8-22	279	285	285	143	90	70	4-9
200	8"	181	220	38	22.1	298.5	295	295	8-22	8-22	12-22	343	340	340	155	125	102	4-11
250	10"	210	260	38	28.45	362	355	355	12-25	12-22	12-26	406	395	405	168	125	102	4-11
300	12"	248	290	38	31.6	431.8	410	410	12-25	12-22	12-26	483	445	460	182	150	125	4-14
350	14"	279	320	45	31.6	476.3	470	470	12-29	16-22	16-26	533	505	520	190	150	125	414
400	16"	305	350	51	33.2	539.8	525	525	16-29	16-26	16-30	597	565	580	216	210	165	4-22
450	18"	336	375	51	37.95	577.9	585	585	16-32	20-26	20-30	635	615	640	222	210	165	4-22
500	20"	345	433	64	45.6	635	650	650	20-32	20-26	20-33	699	670	715	229	210	165	4-22
600	24"	390	500	70	50.62	749.3	770	770	20-35	20-30	20-36	813	780	840	267	210	165	4-22
700	28"	507	560	72	55	-	840	840	-	24-36	24-36	-	895	910	275	300	254	8-18
800	32"	557	640	72	55	-	950	950	-	24-39	24-39	-	1025	1025	292	300	254	8-18
900	36"	596	665	77	75	1085.9	1050	1050	32-41	28-39	28-36	1168	1115	1125	318	300	254	8-18
1000	40"	683	735	85	85	-	1170	1170	-	28-42	28-42	-	1230	1255	410	300	254	8-18
1200	48"	783	917	150	92	1422.4	1390	1390	44-41	32-48	32-48	1511	1455	1485	470	300	298	8-22

Prod Model:	YH-D341X-10/16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structrue:	U-Type Butterfly
Port Size:	Dn32-Dn1200(1.2'-48")
Work Pressure:	Low Pressure (',Pn<1.6mpa)
Connection Form:	Flange
Structure:	Centre Sealing
Seal Form:	Force Sealed
Working Temperature:	Normal Temperature (',-40??C
Application:	Household Usage
Material Of Seal Surface:	Vulcanized Seat

AFCON Ningjin Yahua Industries Co., Ltd. is a manufacturer specialized in design and manufacture industrial valves. It can produce more than 300 specifications, 10 categories, for example wafer type butterfly valve, flanged butterfly valve, eccentric butterfly valve, high-performance butterfly valve, check valve, ball valve, rubber wedge gate valve, Y-type strainer and pipefittings.

In 1999 the company established its own pipefitting research center. The factory has more than 30 engineers including 10 senior engineers, 2 American experts. It can design, manufacture and test the valves according to international standard such as ANSI, BS, DIN and national standards, and It also can meet customers requirement.

The company have many authentication such as ISO9001: 2000 EC's PED, CE, Germany TRD100/WO Material, Norwegian DNV Classification Society Factory as well as British LR, and ltalian RINA product. Also it set up its own quality contral and assurance system so the product can reached many countries and regions, such as the United States, Britain, German, Italy, France, Spain, Hong Kong and so on.

Meeting your requirements is always our mission. We will do our best to meet all with first-class quality, competitive price and best delivery.
