Double Flanged Metal Seal Butterfly Valve
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |

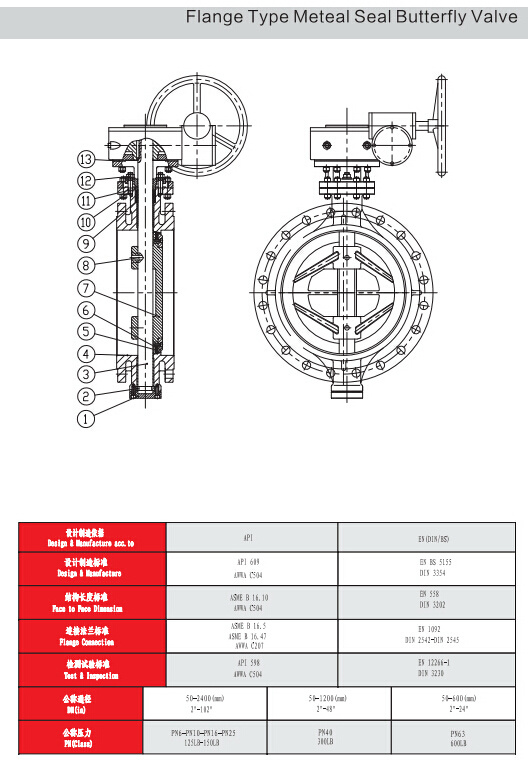

Double Flanged Metal Seal Butterfly Valve
Brief IntroductionFlange butterfly valve adopts different material, different seal ring, suitable for different medium. Widely used in Chemical/Petrochemical Processing, Food & Beverage, Power & Utilities, Pulp & Paper etc.
Key feature and benefitsLight weight
Good wear resistance
Compact structure
Low flow resistance
Small operation torque
Easy to install and maintain

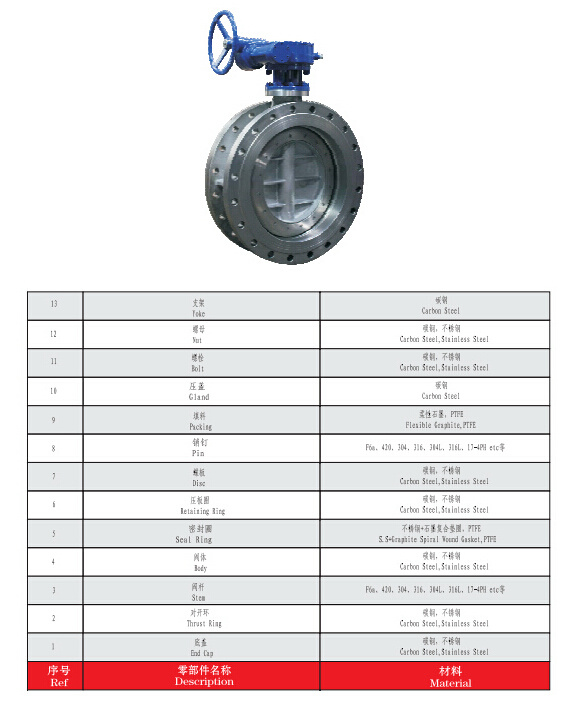

| Part Material |
| Technical Specification |
| NO. | PART NAME | MATERIAL |
| Nominal Pressure: 1.0~1.6MPa |
| 1 | Body | Ductile Iron |
| DN: 50~2000mm |
| 2 | Disc | Stainless Steel |
| Medium: water, oil, gas |
| 3 | Shaft | 2Cr13 |
| Work temperature: ≤ 120 |
| 4 | Seal Ring | NBR |
| Design Standard: BS |
| 5 | Paking | O-ring |
| Flange Standard: BS EN 1092 |
|
|
|
|
|
|
|
|
|
|
| OTHER STANDARD ARE AVAILABLE UPON REQUEST. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimension Unit: mm |

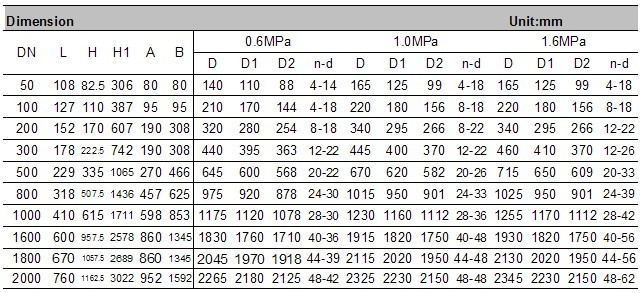

| DN | L | H | H1 | A | B | 0.6MPa | 1.0MPa | 1.6MPa |
| D | D1 | D2 | n-d | D | D1 | D2 | n-d | D | D1 | D2 | n-d |
| 50 | 108 | 82.5 | 306 | 80 | 80 | 140 | 110 | 88 | 4-14 | 165 | 125 | 99 | 4-18 | 165 | 125 | 99 | 4-18 |
| 100 | 127 | 110 | 387 | 95 | 95 | 210 | 170 | 144 | 4-18 | 220 | 180 | 156 | 8-18 | 220 | 180 | 156 | 8-18 |
| 200 | 152 | 170 | 607 | 190 | 308 | 320 | 280 | 254 | 8-18 | 340 | 295 | 266 | 8-22 | 340 | 295 | 266 | 12-22 |
| 300 | 178 | 222.5 | 742 | 190 | 308 | 440 | 395 | 363 | 12-22 | 445 | 400 | 370 | 12-22 | 460 | 410 | 370 | 12-26 |
| 500 | 229 | 335 | 1065 | 270 | 466 | 645 | 600 | 568 | 20-22 | 670 | 620 | 582 | 20-26 | 715 | 650 | 609 | 20-33 |
| 800 | 318 | 507.5 | 1436 | 457 | 625 | 975 | 920 | 878 | 24-30 | 1015 | 950 | 901 | 24-33 | 1025 | 950 | 901 | 24-39 |
| 1000 | 410 | 615 | 1711 | 598 | 853 | 1175 | 1120 | 1078 | 28-30 | 1230 | 1160 | 1112 | 28-36 | 1255 | 1170 | 1112 | 28-42 |
| 1600 | 600 | 957.5 | 2578 | 860 | 1345 | 1830 | 1760 | 1710 | 40-36 | 1915 | 1820 | 1750 | 40-48 | 1930 | 1820 | 1750 | 40-56 |
| 1800 | 670 | 1057.5 | 2689 | 860 | 1345 | 2045 | 1970 | 1918 | 44-39 | 2115 | 2020 | 1950 | 44-48 | 2130 | 2020 | 1950 | 44-56 |
| 2000 | 760 | 1162.5 | 3022 | 952 | 1592 | 2265 | 2180 | 2125 | 48-42 | 2325 | 2230 | 2150 | 48-48 | 2345 | 2230 | 2150 | 48-62 |
| Prod Model: |
D341H / D343H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pn16/ 150 Lbs: |
Dn40 ~ Dn2000 |
| Connection Form: |
Flange |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Material Of Seal Surface: |
Metal Hard Sealed |
| Application: |
Water Industrial Usage |
