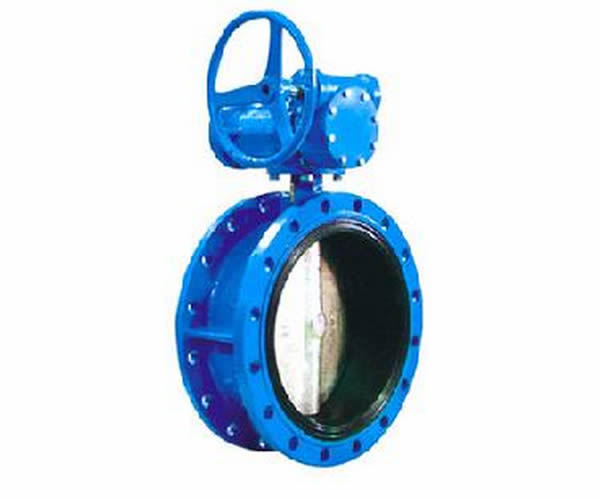

Double Flanged Type Concentric Butterfly Valve

Price:	US $ 11-100$/piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Tianjin Tanggu Tianshun Valve Co., Ltd.

Showroom Product Company Profile

Double Flanged Butterfly Valve Body:Cast iron/Ductile iron/SS316/304/WCB etc Disc: Ductile iron/SS316/305/Aluminum-bronze/Ductile iron,nickle plated etc Stem:SS416/420 etc Seat:EPDM,NBR,VITON Painting:Epoxy paint Methods of operation: Gear wheel/Electric actuator Size:50-1200mm Pressure:PN1.0/1.6MPa Medium:Water/Sea water/Wash water/Oil Temperature Range:-45-+135 Features: Novel and reasonable design,special structure,light, Easy instllation and mintenance.It can be mounted wherever needed. Tiny operative moment,quick 90 degrees on-off operation. Miniminzed operating torque,energy saving. Flow curve tending to straight line.Excellent regulation performance. Long servie life.Standing the test of tens of thousands opening/closing operation. Bubbles-tight sealing with no leakage under the pressure test. Wide selection of materials, applicable for various medeium.

STANDARD MATERIAL OF MAIN PARTS
NO.	PART	MATERIAL
1	Body	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
2	Seat	NBR,EPDM, Viton,Neoprene,HYPALON,Silicon
3	Shaft	Stainless Steel416,316,304
4	Disc	Ductile Iron+Ni,CF8,CF8M,Bronze
5	Pin	Stainless Steel
6	Bushing	PTFE,Bronze
7	O-Ring	NBR,EPDM

Prod Model:	ts010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Pressure:	Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed
Connection Form:	Flange
Structure:	Centre Sealing
Seal Form:	Force Sealed
Working Temperature:	Normal Temperature (',-40??C
Application:	Household Usage

Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
