Quick Details
Standard or Nonstandard: | Standard | Structure: | air release valve | Pressure: | Medium Pressure |
Power: | Manual | Material: | Casting | Temperature of Media: | Normal Temperature |
Media: | Water | Port Size: | Flange:DIN 2501 | Place of Origin: | Hebei, China (Mainland) |
Brand Name: | Liqian | Application: | General | Product name: | Double Orifice Air Release Valve |
Design standard: | DIN3352 | Flange: | DIN 2501 | Test standard: | BS6755 |
Work temperature: | NBR≤80°C,EPDM≤120°C | Working Pressure: | PN10,PN16,PN25 | Body Materials: | Ductile Iron(GGG50) |
Float ball(big and Small): | SS304 or SS316 | Gasket: | NBR or EPDM | Coating: | Blue powder Epoxy,internal and ex |
Packaging & Delivery
Packaging Details: | plywood container |
Delivery Detail: | 30days |

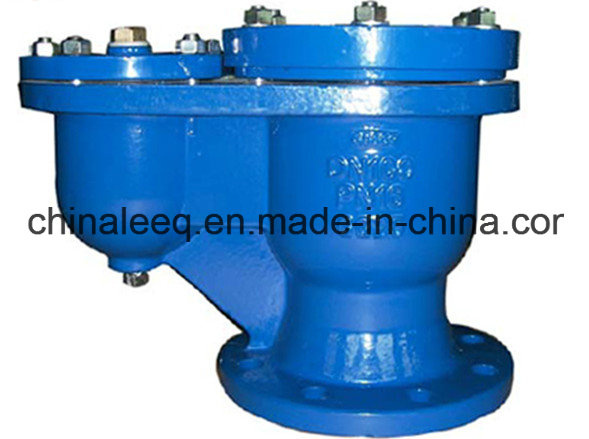

Ductile Iron DIN3352 flanged Double Orifice Air Release Valve DN100,PN10,PN16
Price:FOB USD58.2/pcs
Product Description
Ductile Iron DIN3352 flanged Double Orifice Air Valve also name air release valve,air relief valve
Air valve body materials:ductile iron
Air Valve Design standard:DIN3352
Flange standard:DIN 2501
Test standard:BS6755
Work temperature:NBR≤80°C,EPDM≤120°C
Air valve DN size:DN100 mm
Double orifice air valve that combines both large orifice & small orifice functions within one unit. The large orifice allows air to be expelled from the system during filling of a pipeline and admit air back into the system whenever sub-atmospheric pressure occurs. Air is vented from the system until water enters the valve and lifts the float against its seat, ensuring a tight seal. In the event of sub-atmospheric pressure in the system, the water level drops causing the float to fall from its seat and allow the admission of air.
During normal working of the main the small orifice releases the air which accumulates under pressure. With the main in operation, the float is normally against its seat. As air enters the chamber body the water level is depressed until a level is reached when the float drops from its seat, which allows air to escape. The consequent rise in water level returns the float to its seat.
About-Us
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001:2008 quality management system, ISO 14001:2004 environmental management system, and OHSAS 18001:2007 Occupational Health & Safety System, also with CE, API, KS and Gost certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. and the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
For more information,please visit our website: www.chinaleeq.com
Contact Person: Summer Bai
Mobile: 86-18732961387
Xingtai City Liqian Import & Export Co., Ltd is committed to providing high-quality industrial valves to the international customers. Our factory has a 60-year history on researching, developing, manufacturing and marketing of industrial valve products that are widely used in Oil & Gas, Water Treatment, Power Generation, Petroleum Refinery, Chemical & Petrochemical, and Paper & Pulp industries. It is located in Tianjin-Bohai Economic Center, with strong geographical advantages and development spaces, now becoming the largest valve manufacturer in China. It has passed the authentication of ISO9001: 2008 quality management system, ISO 14001: 2004 environmental management system, and OHSAS 18001: 2007 Occupational Health & Safety System, also with CE, API, KS and GOST certification.
Our exported products include USA ANSI, API, AWWA standard valves, Germany DIN standard valves, England BS standard valves, Japan JIS standard valves, Russia GOST standard valves, France NF standard valves, etc. And the types covering gate valve, globe valve, ball valve, butterfly valve, check valve, diaphragm valve, reducing valve, plug valve, traps valve, etc. With stable quality and long using life, our valves are very popular in USA, Europe, Russia and Middle East markets.
To choose Liqian Valve means to choose safety. We would like to enjoy a win-win cooperation with the customers all over the world!
