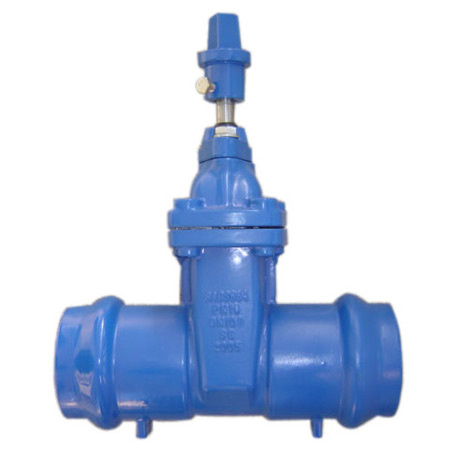

End flange: suitable for PVC Tube
1. Main parts and materials
Standard: |
| Parts Name | Material |
| Body/Bonnet | Ductile Iron |
| Disc | Ductile Iron with EPDM/NBR |
| Stem | Stainless Steel or copper alloy |
Type: Gate valve
Size: DN40-300 or 1.5"-12" or above
Working Pressure: PN10/16
Suitable temperature: 0~100 Celsius
Standard:
(1)Design and manufacture: DIN3352, BS5163, BS5150, , EN593, GB/T12238
(2)End connection: DIN2543-2550, EN1092, AS2129, ISO 5211
(3)Wall thickness: APBS1868
(4)Face to face (end to end): EN 558, DIN3202, ISO5752, BS5155
(5)Inspection and test: EN12266-1, BS6755, ISO5208
Materialfor main parts:
(1)Body: Cast Iron or Ductile Iron
(2)Disc: Ductile Iron coated with EPDM
(3)Stem: SS416, SS410, SS304, SS431
(4)Seat: NR, Hypalon, EPDM, Neoprene, NBR, Wear-Resistant EPDM, Viton, Silicon, Heat-Resistant EPDM, WhiteNBR, WhiteEPDM, EPDM, PTFE
Coating: Fusion bonded epoxy coated
Connection type: Flanged type, Push-on type, Mechanical Joint type, Plain ends type
Sealing: Soft sealing or metal-to-metal seat, Flexible graphite
Operation: Manual, Pheunatic, Electric, Hydraulic and Pnewmatic-Hydraul
Appropriate medium: Air, water, sewage, steam, coal gas, oil
Packaging: Export polywood cases, or as per customers' requirements
Delivery Time: 25 days after order conformed
Payment: By T/T or L/C
Application: Fresh water, sewage, sea water
With more than 20 years' manufacturing experience, Fu Jian General Valve Co. Ltd specializes in producing all kinds of valves. Our Main producsts are Gate Valves (resilient-seated and Metal-Seated), Butterfly Valves, Globe valves, Ball Valves, Check Valves, Air Valves, Plug Valves, Y-Strainers and Fittings widely used in pipe lines for water, gas and oil industries. They are designed and manufactured strictly in conformity with the latest standard of GB, JIS, BS, ANSI, DIN, API, AWWA and with dimensions in DN40-DN2200. The materials can be Cast Iron, Ductile Iron, Cast steel and Stainless steel. There are more than 30 sets of larger- size -vertical lathe, advanced spraying and printing assembly line, which make the appearance meeting advanced internal and external standards. In particular, we have 3 advanced engineers, 12 engineers, and the professional techinical staff occupy 23.6% of the total. The technique and quality department owns perfect testing equipments for mechanical processing, physics & chemistry testing, hydraulic pressure and sealing testing etc. All products will be strictly tested before delivery.
We got ISO 9001: 2000 quality system certificate of SGS in 2007. In 2009, we passed FM factory initial assessment, UL products initial assessment. Those certificates will reach us in Feb, 2010. Our company adheres to "quality first, customers first" and takes technical innovation as our momentum so as to provide better products and service to the clients.
