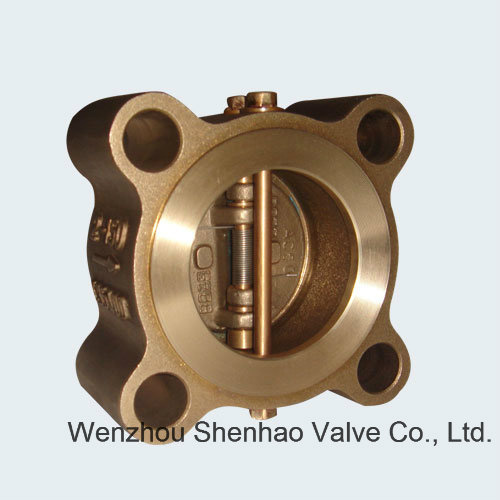

Dual plate wafer check valve-Lug type
Features:
Sizes 2"-48"; DN50-DN1200
Class 150-2500 as specified in B16.34; PN1.0Mpa-42.0Mpa as specified in DIN2401
Lug/Wafer/Flanged type
Swing type
Standards:
Face to Face or End to End: API594&API6D&DIN3202
Pressure temperature ratings: ASME B16.34 & DIN2401
Flange dimension(RF): ANSI B16.5

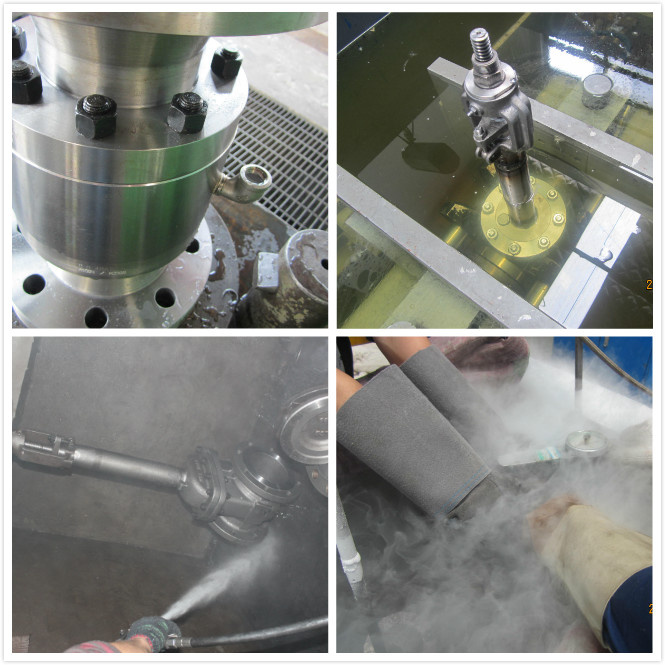

Inspection & Test: API598
Material:
Cast Steel: ASTM A216 WCA, WCB, WCC
Stainless Steel: ASTM A351CF3, CF3M, CF8, CF8M, CF8C, F304, F316, F304L, F316L, F321, F347
Cr-Mo Steel: ASTM A217 WC1, WC6, WC9, C5, C12, C12A, F11, F22, F5, F9, F91
Low Temperature Steel: ASTM A351 LCA, LCB, LCC, LC1, LC2, LC3
Standard or Nonstandard | Standard |
| Structure | Check |
| Pressure | Medium Pressure |
| Power | Medium |
| Material | Brass |
| Temperature of Media | Medium Temperature |
| Media | Water, oil, gas, acid fluid |
| Port Size | 2' ' -48' ' |
| Place of Origin | Zhejiang, China (Mainland) |
| Model Number | H71 |
| Brand Name | DERVOS, OEM |
